• 4×4:4 MU-MIMO Wi-Fi 6 (802.11ax) compatible for top speeds
• 8.4 Gbps tri-radio aggregate frame rate for gigabit Wi-Fi
• 5 GbE PoE+ port to maximize the connection speed and AP placement
• Tri-concurrent 802.11ax architecture backward compatible with all ac/a/b/g/n client devices
• The 1200 MHz band that supports AR/VR, ultra-high HD, and other applications
• The 6 GHz interference-free band allows ultra-fast Gigabit WiFi speeds
• Integrated enterprise security and guest access
• Powerful built-in Qualcomm Quad-core CPU for superior performance and advanced 1024-QAM for faster packet transmission
• OFDMA and MU-MIMO for fast, efficient transmissions between the AP and client devices and BSS coloring for increased spatial reuse
• Access point diagnostic tools for real time channel utilization

Specifications

Standards :

• IEEE 802.11ax on 2.4 GHz
• IEEE 802.11ax on 5 GHz
• IEEE 802.11ax on 6 GHz
• (Backward compatible with 802.11b/g/n/ac)

Processor : Qualcomm® Networking Pro 1210 Platform

Antenna :

• 4 x 2.4 GHz: 5 dBi
• 4 x 5 GHz: 6 dBi
• 4 x 6 GHz: 5 dBi

Physical Interface :

• 1 x 10/100/1000/2500/5000 BASE-T, RJ-45 Ethernet Port
• 1x DC Jack
• 1 x Reset Button

LED Indicators :

• 1 x Power
• 1 x LAN
• 1 x 2.4 GHz
• 1 x 5 GHz
• 1 x 6 GHz

Power Source :

• Power-over-Ethernet: 802.3at Input 12VDC /2A Power Adapter (Not Included)

Maximum Power Consumption : 22.5W

Wireless & Radio Specifications

Operating Frequency : Dual-Radio Concurrent 2.4 GHz, 5 GHz, & 6 GHz

Operation Modes :

• AP, Mesh

Frequency Radio :

• 2.4 GHz: 2400 MHz ~ 2835 GHz
• 5 GHz: 5150 MHz ~ 5250 MHz
• 5250 MHz ~ 5350 MHz
• 5470 MHz ~ 5725 MHz
• 5725 MHz ~ 5850 MHz
• 6 GHz: 5.925GHz~6.425GHz
• 6.425GHz~6.525GHz
• 6.525GHz~6.875GHz,
• 6875GHz~7.125GHz

Transmit Power :

• Up to 23 dBm on 2.4 GHz
• Up to 23 dBm on 5 GHz
• Up to 23 dBm on 6 GHz
• (Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF) : Increasing signal reliability and transmitting distance.

Radio Chains/Spatial Stream : 4×4:4

SU-MIMO :

• Four (4) spatial stream SU-MIMO for 2.4GHz and four spatial stream SU-MIMO for 5GHz up to 3,548 Mbps wireless data rate to a single wireless client device under 2.4 GHz, 5 GHz, and 6 GHz radios.

MU-MIMO :

• Four (4) spatial streams multi-user (MU)-MIMO for up to 4800 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 6GHz simultaneously.
• Four (4) spatial streams multi-user (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
• Four (4) spatial streams multi-user (MU)-MIMO for up to 1148 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps) :

• 802.11ax:
• 6 GHz:
• 5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
• 2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4)
• 802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
• 802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)
• 802.11a/g: 6, 9, 12, 18, 36, 48, 54
• 802.11b: 1, 2, 5.5, 11

Supported Radio Technologies :

• 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
• 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
• 802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization :

• 802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
• 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
• 802.11n supports high throughput (HT) —HT 20/40 MHz
• 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
• 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
• Dynamic Frequency Selection (DFS) Certified

Supported Modulation :

• 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
• 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
• 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
• 802.11b: BPSK, QPSK, CCK

Management Features

Multiple BSSID : 8 SSIDs for 2.4GHz, 5GHz, & 6 GHz radios

VLAN Tagging :

• Supports 802.1q SSID-to-VLAN Tagging
• Cross-Band VLAN Pass-Through
• Management VLAN

Spanning Tree : Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service) : IEEE 802.11e compliant WMM

Wireless Security :

• WPA3 Enterprise
• WPA3-PSK (SAE)
• WPA3/WPA2-PSK Mixed
• WPA2 Enterprise
• WPA2 AES-PSK
• Hide SSID in Beacons
• MAC Address Filtering, up to 256 MACs per SSID
• Wireless STA (Client) Connected List
• SSH Tunnel
• Client Isolation
• L2 Isolation

Dimensions & Weight

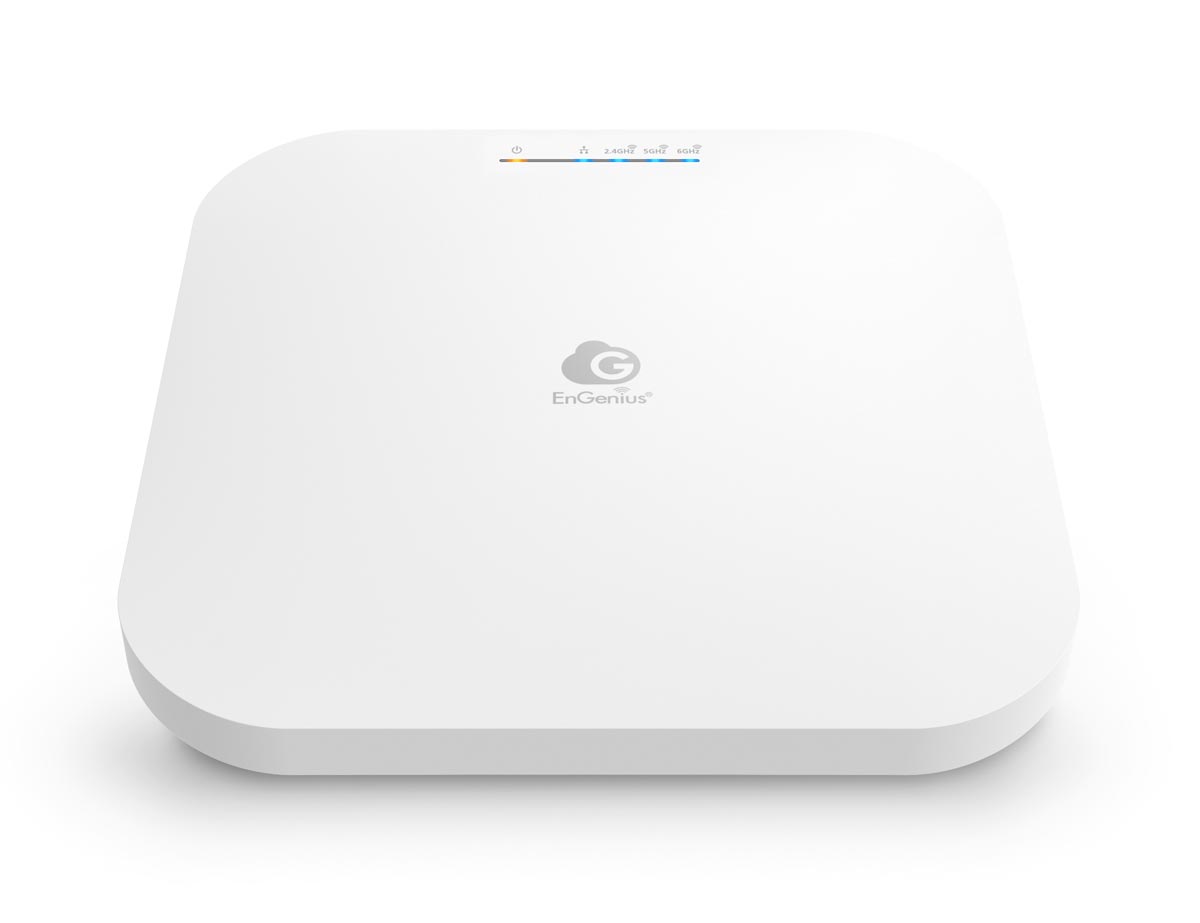

ECW336 Device

• Weight: 1.34 lbs. (607 g)
• Length: 8.27″ (210 mm)
• Width: 8.27″ (210 mm)
• Height: 1.31″ (33.2 mm)

Package Contents :

• 1 – ECW230S Cloud Managed Indoor Access Point
• 1 – Ceiling Mount Base (9/16” Trail)
• 1 – Ceiling Mount Base (15/16” Trail)
• 1 – Ceiling and Wall Mount Screw Kits
• 1 – Quick Installation Guide

Packaging :

• Weight: 2.5 lbs. (1134 g)
• Length: 9.65″ (245 mm)
• Width: 9.65″ (245 mm)
• Height: 3.35″ (85 mm)
