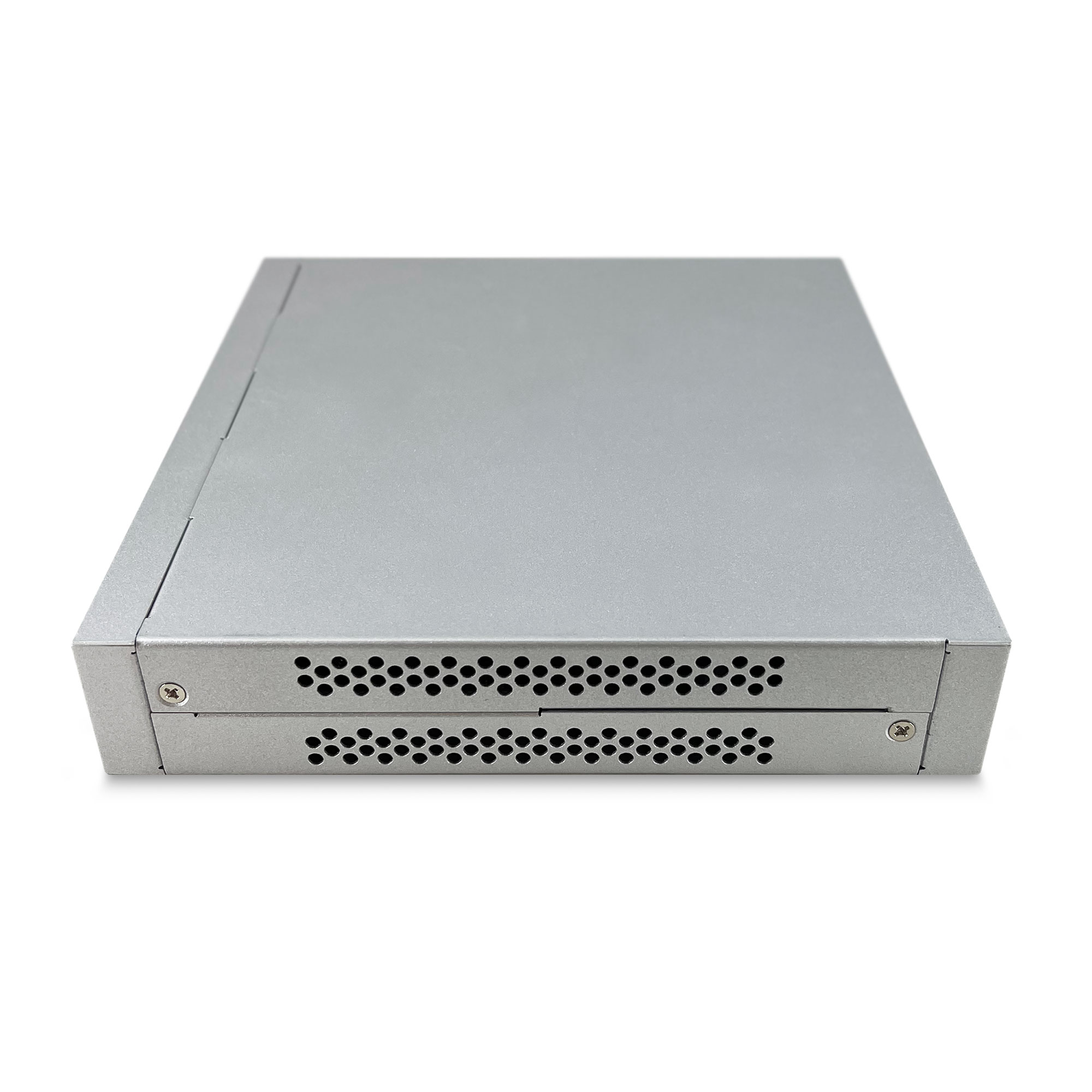

EnGenius Cloud Managed Switch



  • 8 x gigabit PoE+ Ports and 2 x Dual-Speed SFP (1G Fiber) uplink ports for high-speed connections
  • 8 x 802.3 at/af PoE+ ports with 130W PoE budget
  • Zero touch provisioning, centralized cloud management and visualized monitoring
  • Hybrid cloud switch supports flexible management options such as EnGenius Cloud or standalone
  • Robust security that supports Port based / MAC based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication and more
  • Optimized for quality voice and video traffic with Voice-VLAN feature
  • PoE Extended Mode – Extend PoE Ethernet cable deploying range up to 250 meters
  • PD Lifeguard – Real-time detecting and auto-reboot PoE power for failed camera
  • Continuous PoE Power – Steady supply of PoE power for camera during switch upgrades



TECHNICAL SPECIFICATIONS

Port Standards

  • 802.3 10Base-T Ethernet
  • 802.3u 100Base-TX Ethernet
  • 802.3ab 1000Base-T Ethernet
  • 802.3x Full-Duplex Flow Control

Network Ports : 10 10/100/1000 Mbps Ports + 2x SFP Ports

Switching Capacity : 24Gbps

SDRAM : 256MB

Flash Memory : 32MB

PoE Capable Ports : 1-8

Total PoE Budget : 130W

Power Source : 100 ~ 240VAC, 50-60Hz



PHYSICAL INTERFACE

LED Indicators :

  • Power LED
  • Fault LED
  • PoE Max LED
  • LAN Mode LED
  • PoE Mode LED

Ports :

  • Link/Activity/Speed (per Ethernet port)
  • Link/Activity/Speed (per SFP slot)



L2 FEATURES

Network Management :

  • EnGenius Cloud
  • ezMaster
  • Local Web GUI

MAC Address Table : 8K

Jumbo Frame : 9K

Multicast Group : Max 256 groups

MLD Snooping : MLD Snooping: v1

DSCP : CoS/802.1p-DSCP

Scheduling Mechanism : Strict / WRR/ Strict + WRR

Bandwidth Control : Port-based bandwidth control (Ingress/Egress)

Port Security : Max. 256 Entries

Access Control List (ACL) :

  • MAC Based ACL
  • IPv4/IPv6 Based ACL
  • ACL Binding

Web Graphic User Interface (GUI) :

  • HTTP IPv4 / IPv6
  • HTTPS IPv4 / IPv6



L3 FEATURES

Multiple IP Interface : 20 IPv6 address

ARP Table : Max. 192 ARP entries

Static ARP : Static 192 ARP entries

IPv4 Static Route : Max. 63 entries
