Specification

Supports creating volumes across different units:

• SA3200D

Supports creating volumes on a single unit only:

• UC3200

Drive Bays: 12

Compatible Drive Type:

• 3.5″ SAS HDD
• 2.5″ SAS HDD
• 2.5″ SAS SSD

Maximum Internal Raw Capacity: 192 TB (16 TB drive x 12) (Capacity may vary by RAID types)

SAS IN-port: 2

SAS OUT-port: 2

Power Supply Unit / Adapter: 500W

Packaging Content:

• Main Unit x 1
• Accessory Pack x 1
• AC Power Cord x 2
• Expansion Cable: Mini-SAS-HD X 2
• Quick Installation Guide x 1

Features

On-the-fly SAS expansion up to 12 additional bays

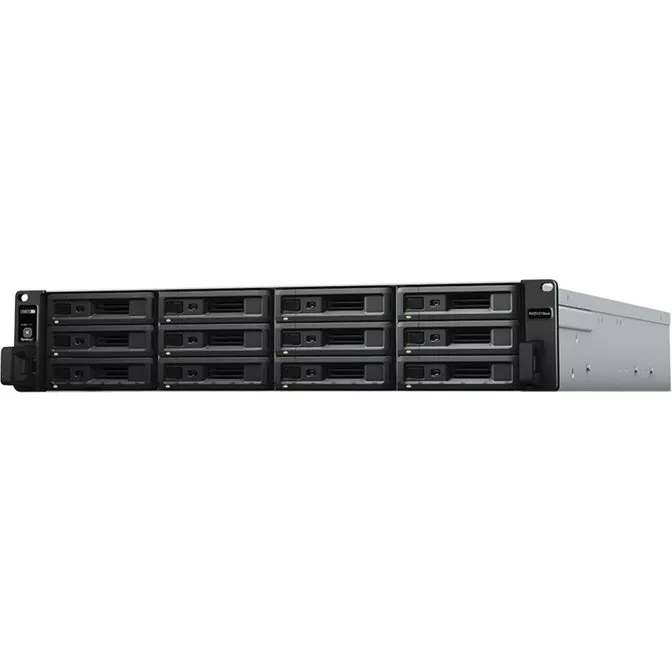

RXD1219sas is a 2U expansion unit designed to work automatically when connected, providing an effortless storage space upgrade solution for your Synology servers¹. You can add up to 12 additional 2.5″ / 3.5″ SAS drive bays on the fly when connected directly with a mini-SAS HD cable.

Designed for maximum reliability

The redundant power supplies ensure maximum service uptime. On the rare occasion when a failure occurs, you can instantly replace the hot-swappable drive trays, and with the key system components modularized, SAS modules and system fans can also be replaced with ease.

High-performance data transmission

The mini-SAS HD provides high bandwidth connectivity to achieve maximum throughput during data transfer between your Synology server and RXD1219sas. It allows the drives in the connected RXD1219sas to operate as if they are the internal drives of the Synology server with no data latency.
