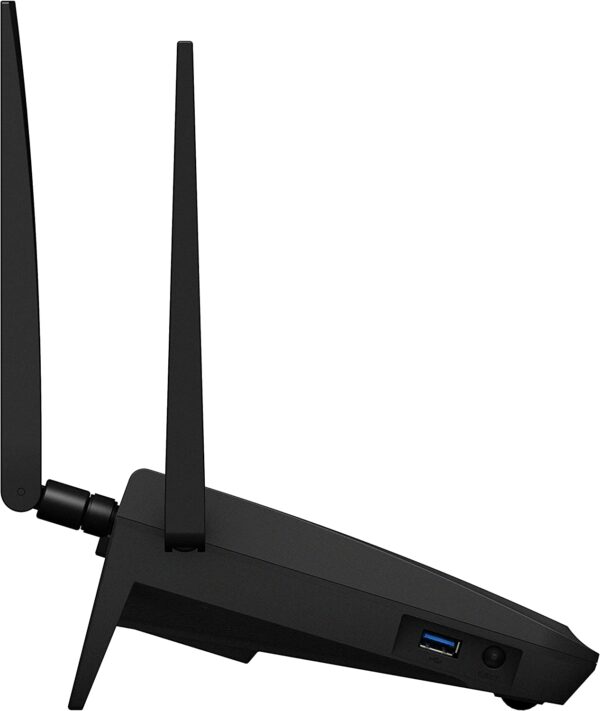

Synology Router

Hardware Specification

CPU : Dual core 1.7 GHz

Hardware Acceleration Engine : Layer 4 / Layer 7

Memory : 512 MB DDR3

Antenna Type : 4×4 MIMO Omni-directional high-gain dipole (2.4GHz / 5GHz)

LAN Port :

  • Gigabit (RJ-45) x 4
  • Gigabit (RJ-45) x 3 (Dual WAN)

WAN  Port :

  • Gigabit (RJ-45) x 1
  • Gigabit (RJ-45) x 2 (Dual WAN)

External Port :

  • USB 3.0 x 1 (5V, 0.9A power output)
  • USB 2.0 x 1 (5V, 0.5A power output)
  • SD card reader x 1 (SDXC, SDHC)

IEEE 802.11ac :

  • IEEE 802.11a/b/g/n/ac
  • Simultaneous dual-band Wi-Fi
  • 5GHz: 1.73Gbps
  • 2.4GHz: 800Mbps

IEEE 802.11ac Wave 2 :

  • MU-MIMO
  • 2×2 160 MHz (contiguous 80 + 80 MHz)
  • 2×2 80 + 80 MHz (discontiguous)

Wifi Encryption : WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, OWE

Button And Switch : WPS, USB/SD eject, Power, Reset, Wi-Fi On/Off

Packaging Content :

  • Main Unit X 1
  • Antenna X 4
  • AC Power Adapter X 1
  • RJ-45 LAN Cable X 1
  • Quick Installation Guide X 1

Software Specification

Operating Mode :

  • Wireless Router
  • Wireless AP

Internet Connection :

  • Dynamic IP, Static IP, PPPoE, PPTP, DS-Lite (AFTR)
  • 3G/4G LTE dongle
  • Android Tethering
  • iPhone Tethering

VPN :

  • VPN server (WebVPN, SSL VPN, SSTP, OpenVPN, L2TP/IPSec, PPTP, Site-to-Site)
  • VPN client (PPTP, OpenVPN, L2TP/IPSec)
  • VPN Pass-through (PPTP, IPSec, L2TP)

Security :

Firewall/SPI Firewall, DoS Protection, VPN Pass-through (PPTP, IPSec, L2TP), Auto block, SSL certificate, Security Advisor, two-factor authentication

Features

Up to five networks : Create up to 5 separate networks and 15 Wi-Fi SSIDs to distribute your devices based on their role or purpose.

Network segmentation : Isolate networks or set one-way access rules to limit connectivity to and from vulnerable devices.

VLAN Tagging : Integrate the RT2600ac into existing networks with full VLAN support in router, AP, and mesh configurations
