Description
- Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- Powerful, integrated antennas provide stable wireless connections and better coverage
- Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection
- Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4GHz band and 433 Mbps on the 5GHz band
- Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type
HARDWARE FEATURES

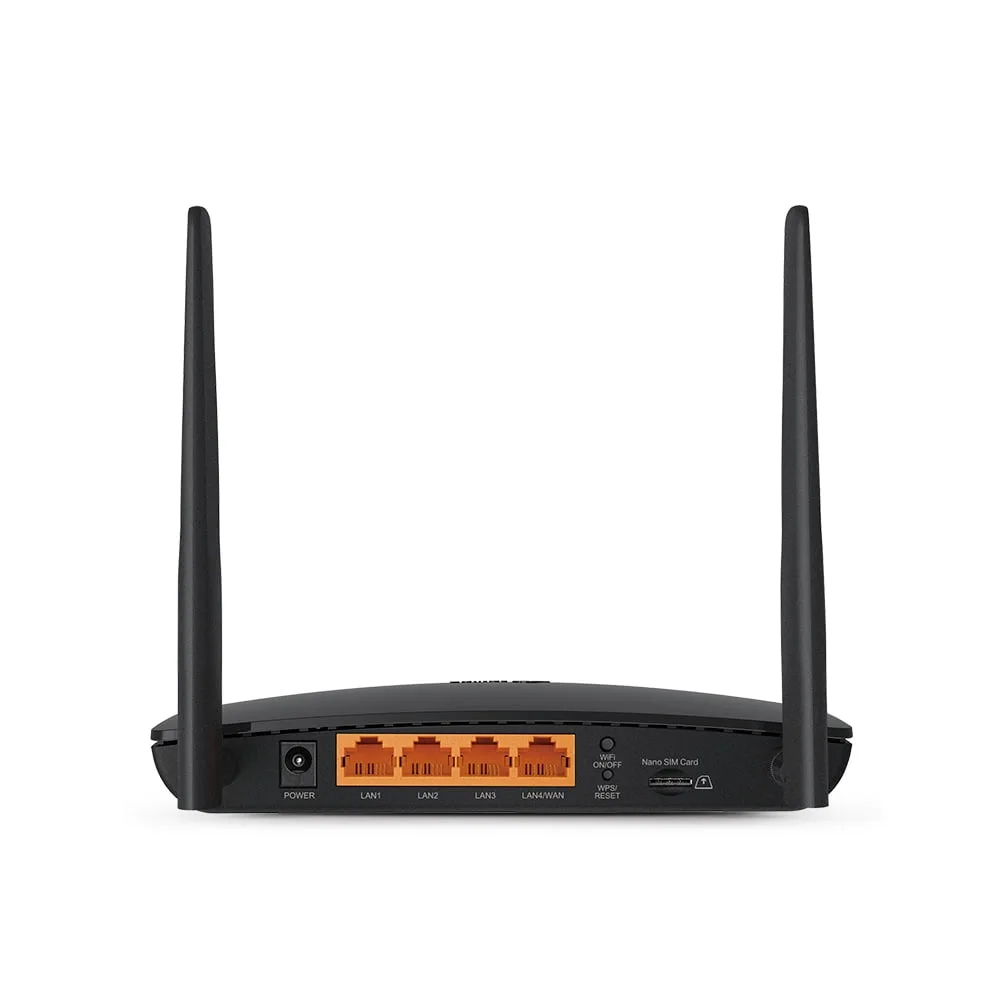

Interface :
- 3× 10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port, 1× Nano SIM Card Slot
Button :
- WPS/RESET Button, Wi-Fi ON/OFF Button
External Power Supply : 12V/1A
Dimensions (W x D x H) : 6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm)
Antenna :
- 2 Detachable External 4G LTE Antennas
WIRELESS FEATURES
Wireless Standards : IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency : 2.4 GHz and 5 GHz
Signal Rate : 300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz
Wireless Functions :
- Enable/Disable Wireless Radio
- Wireless Schedule
- WMM
- Wireless Statistics
Wireless Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type :
- 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)
- TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)
- 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)
SOFTWARE FEATURES
Quality of Service : Prioritizes network traffic by device or application
Operating Modes : 3G/4G Router, Wireless Router
WAN Type : Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management :
- Access Control
- Local Management
- Remote Management
- Reboot schedule
DHCP : Server, DHCP Client List, Address Reservation
Port Forwarding : Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS : DynDns, NO-IP, TP-Link DDNS
Firewall Security : DoS, SPI Firewall, IP and MAC Address Binding
Protocols : Supports IPv4 and IPv6
Guest Network : 2.4GHz guest network x 1, 5GHz guest network x 1
VPN Server : PPTP VPN, OpenVPN
