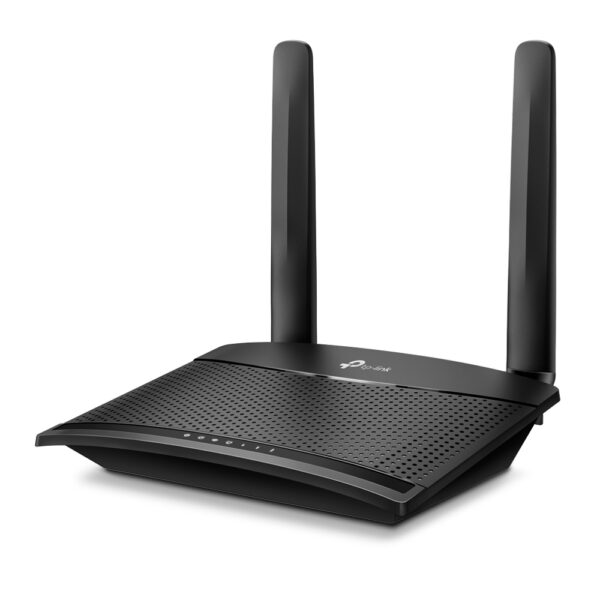

• Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
• Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
• Two detachable advanced LTE antennas – Enjoy stable and efficient connections to every device thanks to the two external antennas
• Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can’t get a 4G connection

HARDWARE FEATURES

Interface :

• 1 10/100Mbps LAN Port
• 1 10/100Mbps LAN/WAN Port
• 1 Micro SIM Card Slot

Button :

• WPS/Reset Button

External Power Supply(EU) : 9V/0.85A

Dimensions (W x D x H) : 6.06×4.49×1.42 in ( 154×114×36 mm)

Antenna : 2 Detachable External 4G LTE Antennas

Antenna Type :

• V3/APAC: 2 Internal 4G LTE Antennas
• V4/V2/V1: 2 Detachable 4G LTE Antennas

WIRELESS FEATURES

Wireless Standards : IEEE 802.11b/g/n

Frequency : 2.4 GHz

Signal Rate : 300Mbps

Wireless Functions :

• Enable/Disable Wireless Radio
• Wireless Schedule
• WMM
• Wireless Statistics

Wireless Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type :

• 4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
• TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
• 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES

Security : IPv4 SPI Firewall, IP and MAC Address Binding

Operating Modes : 3G/4G Router, Wireless Router

WAN Type : Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management :

• Local Management
• Remote Management

DHCP : Server, DHCP Client List, Address Reservation

Port Forwarding : ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS : DynDns, NO-IP

Protocols : IPv4, IPv6

Guest Network : 2.4 GHz Guest Network

Administration : Upgrade Firmware, Factory Default, System Log, Diagnostic Tools
