• 802.11ac for up to 867Mbps on 5GHz wireless data rate
• 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
• Excellent beam directivity, improved latency and noise cancellation

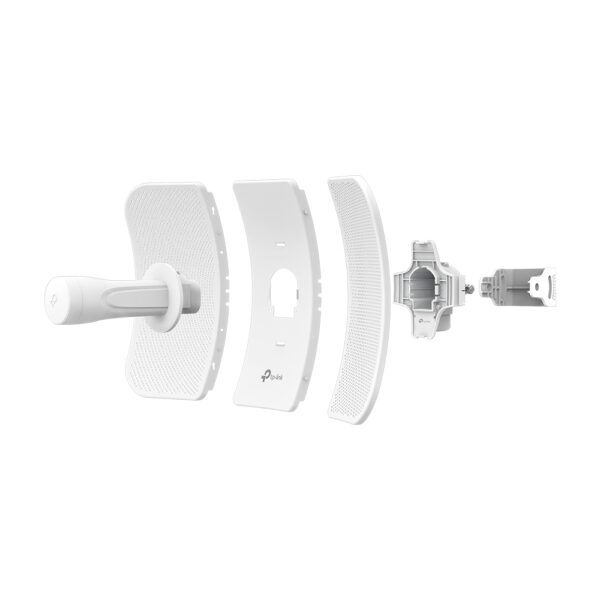

• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
• Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
• Pharos Control gives administrators a free, centralized management system
• Passive PoE supports to allow flexible deployment and convenient installation

Specifications

Hardware Features

Processor : Qualcomm 750MHz CPU, MIPS 74Kc

Memory : 128 MB DDR2 RAM, 16 MB Flash

Interface : 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button

Power Supply : Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC

Dimension ( W x D x H ) : 14.4 x 11.0 x 8.1 in. (366 x 280 x 207 mm)

Antenna Gain : 23 dBi

Antenna Beamwidth : 9° (Azimuth)/7° (Elevation)

Protection : 15 KV ESD Protection
6 KV Lightning Protection

Enclosure : Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

Wireless Features

Wireless Standards : IEEE 802.11a/n/ac

Wireless Speeds :

• Up to 867 Mbps (80 MHz, Dynamic)
• Up to 400 Mbps (40 MHz, Dynamic)
• Up to 173.4 Mbps (20 MHz, Dynamic)

Frequency : 5.15–5.85 GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
