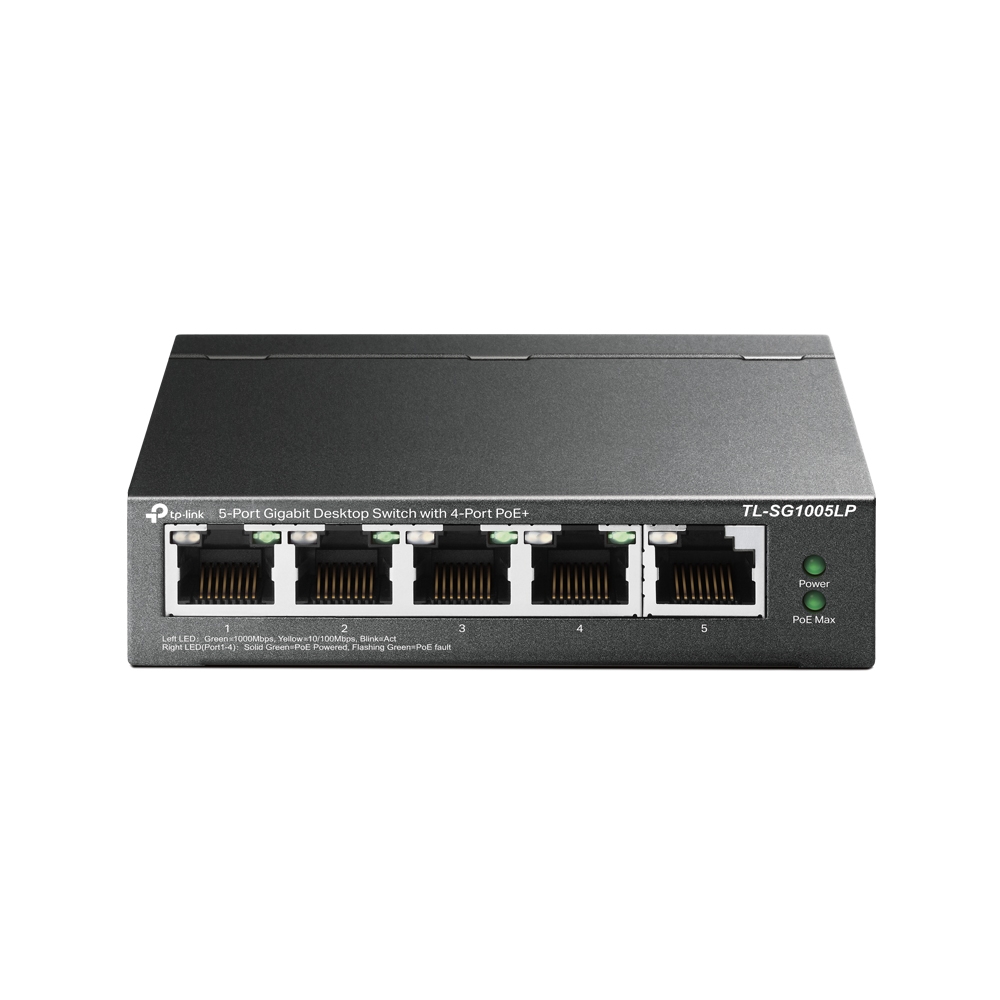

• 5× 10/100/1000 Mbps RJ45 ports
• With four PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 40 W for all PoE ports^*
• Plug and play, no configuration and installation required

HARDWARE FEATURES

Interface :

• 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX

Network Media :

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity : Fanless

External Power Supply : External Power Adapter (Output: 53.5 VDC / 0.81 A)

Packet Forwarding Rate : 7.44 Mpps

PoE Ports (RJ45) :

• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 40 W

Mac Address Table : 2K

Jumbo Frame : 16 KB

Switching Capacity : 10 Gbps

Dimensions (W x D x H) : 3.9×3.9×1.0 in (99.8×98×25 mm)

Max Power Consumption :

• 4.12 W (220/50 Hz. no PD connected)
• 47.5 W (220/50 Hz. with 40 W PD connected)

Max Heat Dissipation :

• 14.05 BTU/h (no PD connected)
• 161.98 BTU/h (with 40 W PD connected)

SOFTWARE FEATURES

Advanced Features :

•  Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping

Transfer Method : Store-And-Forward
