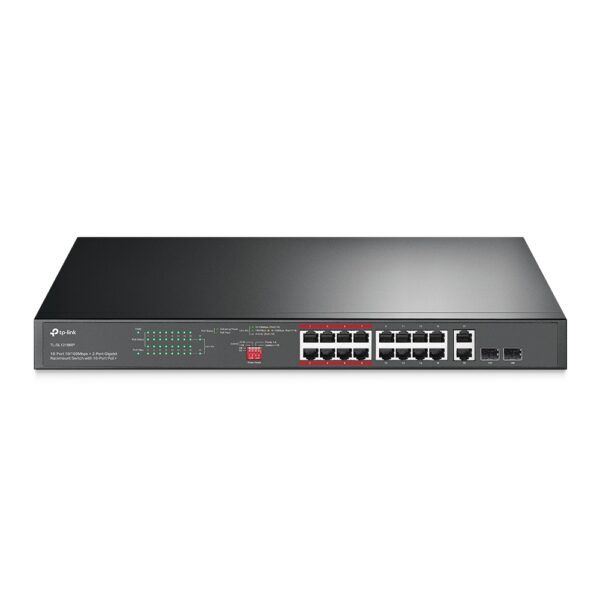

• 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.
• High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports.^*
• Up to 250 m data and power transmission under extend mode specially designed for surveillance system.^**
• Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
• Isolation Mode allows one-click client traffic separation for higher security and performance.
• Easy to use, with no configuration and installation needed.

HARDWARE FEATURES

Interface :

•  16 PoE+ 10/100 Mbps RJ45 Ports
• 2× 10/100/1000 Mbps RJ45 Ports
• 2× Combo Gigabit SFP Slots

Network Media :

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF

Fan Quantity : 2 Fans

Physical Security Lock : Yes

Power Supply : 100–240V AC, 50/60 Hz

PoE+ Ports (RJ45) :

•  Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–16
• PoE Power Budget: 250 W

Dimensions (W x D x H) : 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Max Power Consumption :

• 15.0 W (no PD connected)
• 285.8 W (with 250 W PD connected)

Max Heat Dissipation :

• 51.1 BTU/h (no PD connected)
• 974.6 BTU/h (with 250 W PD connected)

PERFORMANCE

Switching Capacity : 7.2 Gbps

Packet Forwarding Rate : 5.36 Mpps

MAC Address Table : 8K

Jumbo Frame : 10 KB

SOFTWARE FEATURES

Advanced Features :

• Compatible With IEEE 802.3at/af Compliant PDs
• Extend Mode (Up to 250m PoE power supply and data transmission)
• Priority Mode
• Isolation Mode
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control

Transmission : Store-And-Forward
