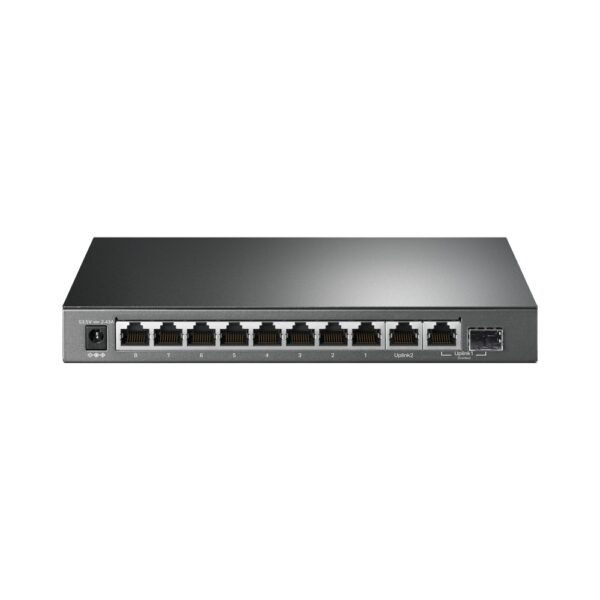

TP-Link POE+ Switch/POE Switch



  • 9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port
  • 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
  • Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
  • Up to 250 m data and power transmission range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
  • Plug and play with no configuration required
  • Fanless design reduces power consumption and works silently in its location



HARDWARE FEATURES

Interface :

  •  9× 10/100/1000 Mbps RJ45 Ports
  • 1× 1000 Mbps Combo SFP/RJ45 Port
  • AUTO Negotiation
  • AUTO MDI/MDIX

Network Media :

  •  10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity : Fanless

Physical Security Lock : Yes

External Power Supply : External Power Adapter (Output: 53.5VDC / 2.43A)

Packet Forwarding Rate : 14.88 Mpps

PoE Ports (RJ45) :

  • Standard: 802.3 af/at compliant
  • PoE Ports: Ports 1–8
  • Power Supply: 123 W

Mac Address Table : 4K

Jumbo Frame : 16KB

Switching Capacity : 20 Gbps

Dimensions (W x D x H) : 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

Max Power Consumption :

  • 7.93 W (220V / 50Hz with no PD connected)
  • 141.40 W (220V / 50Hz with 123 W PD connected)

Max Heat Dissipation :

  • 27.04 BTU/h (220V / 50Hz with no PD connected)
  • 482.17 BTU/h (220V / 50Hz with 123 W PD connected)



SOFTWARE FEATURES



MANAGEMENT

Transmission Method : Store-And-Forward

Advanced Functions :

  • Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
  • Priority Mode Button (Ports 1–2)
  • Isolation Mode Button (Ports 1–4 / 5-8)
  • PoE Auto Recovery (Ports 1-8)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
