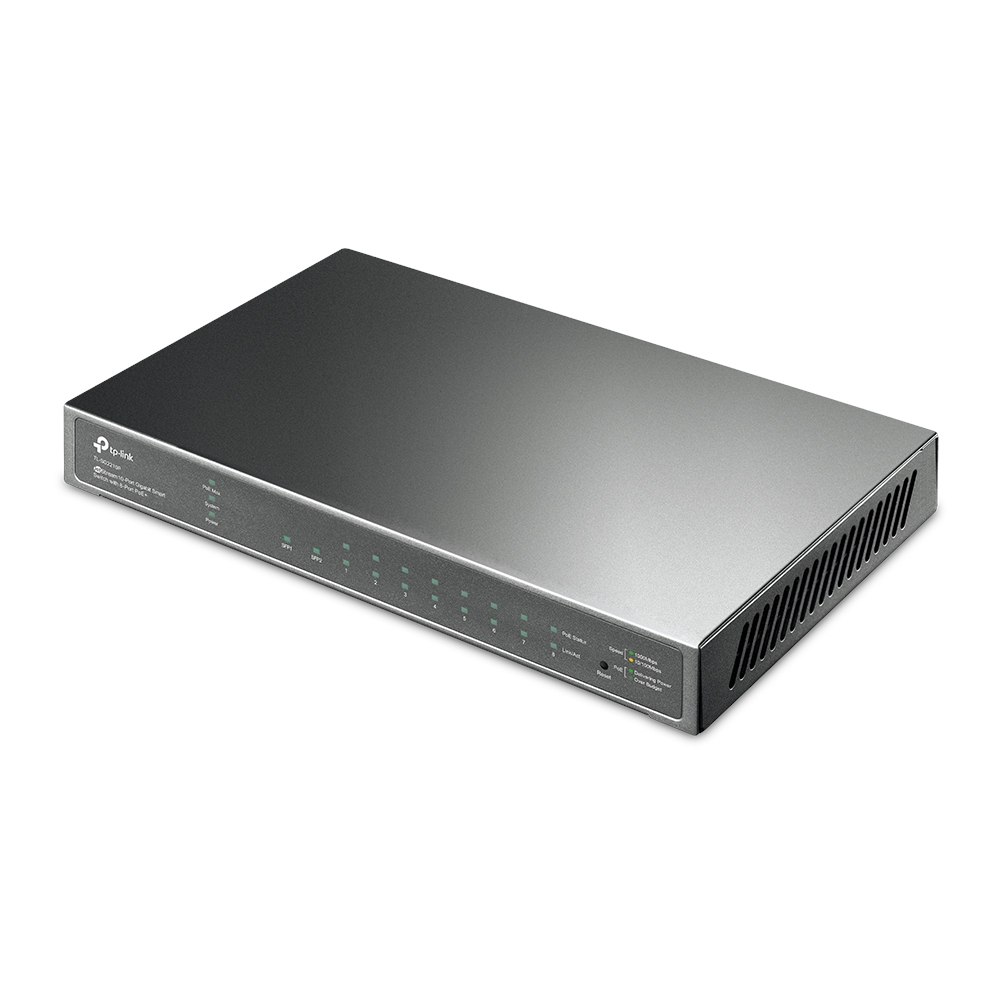

• Full Gigabit Ports: 8× gigabit RJ45 ports provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning*, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Robust Security Strategies: 802.1Q VLAN, ACL, Port Security, Storm Control, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
• Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.

HARDWARE FEATURES

Standards And Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface :

• 8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)

Network Media :

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity : Fanless

Power Supply :

• 12 VDC/1 A External Adapter or
• Obtain Power from PoE Source

Power Consumption : 6.4 W (220 V/50 Hz)

Dimensions (W x D x H) : 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

PERFORMANCE

Bandwidth/Backplane : 16 Gbps

Packet Forwarding Rate : 11.9 Mpps

MAC Address Table : 8K

Packet Buffer Memory : 4.1 Mbit

Jumbo Frame : 9KB

MANAGEMENT

Omada App : Yes, through

• Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2)
• OC300
• OC200
• Omada Software Controller

Centralized Management :

• Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2)
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller

Cloud Access : Yes, through

• Omada Cloud-Based Controller (Not Supported by TL-SG2428P v2)
• OC300
• OC200
• Omada Software Controller

Zero-Touch Provisioning : Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2428P v1, v3 and above, while is not supported by TL-SG2428P v2)

Management Features :

• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
