Products

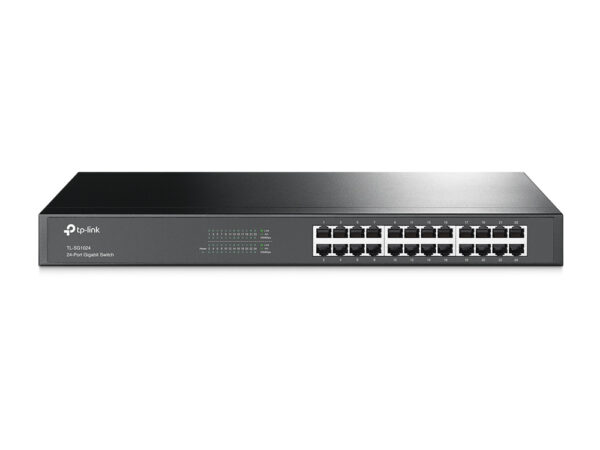

• 24 10/100/1000Mbps RJ45 ports
• Innovative energy-efficient technology saves power consumption
• Supports MAC address self-learning and auto MDI/MDIX
• Standard 19-inch rack-mountable steel case

HARDWARE FEATURES

Standards And Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface : 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media :

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity : Fanless

Physical Security Lock : No

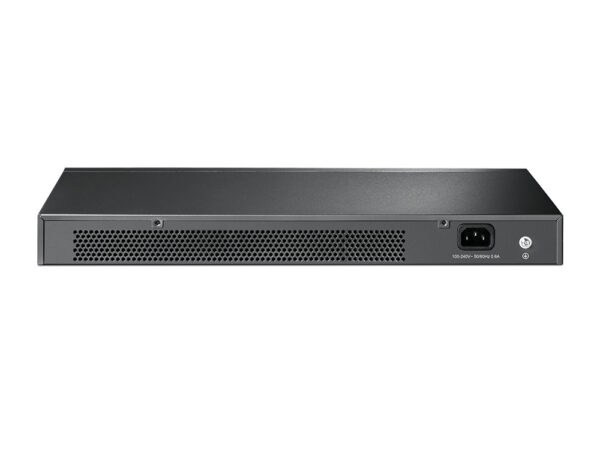

Power Supply : 100-240VAC, 50/60Hz

Dimensions (W x D x H) : 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)

Mounting : 19″ Rack Mountable

Max Power Consumption : 13.6W

Max Heat Dissipation : 46.4BTU/h

PERFORMANCE

Switching Capacity : 48Gbps

Packet Forwarding Rate : 35.7Mpps

MAC Address Table : 8K

Jumbo Frame : 10KB

QoS : 802.1p/DSCP QoS* *Only for V11 and later version

Green Technology : Yes

Transfer Method : Store-and-Forward
