Products

• 16 10/100/1000Mbps ports
• Innovative energy-efficient technology saves power consumption
• Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
• Plug & play design

HARDWARE FEATURES

Standards And Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

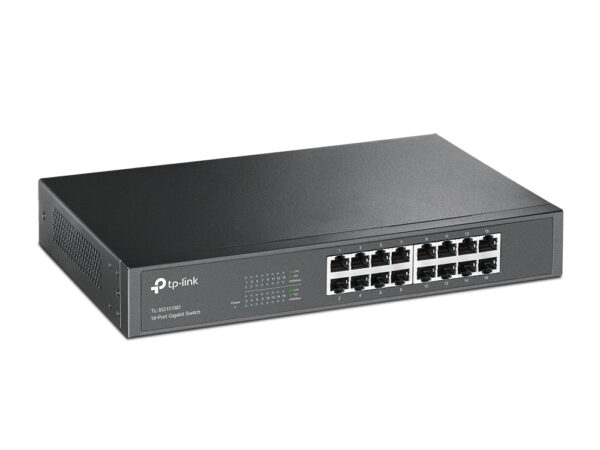

Interface : 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media :

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity : Fanless

Physical Security Lock : No

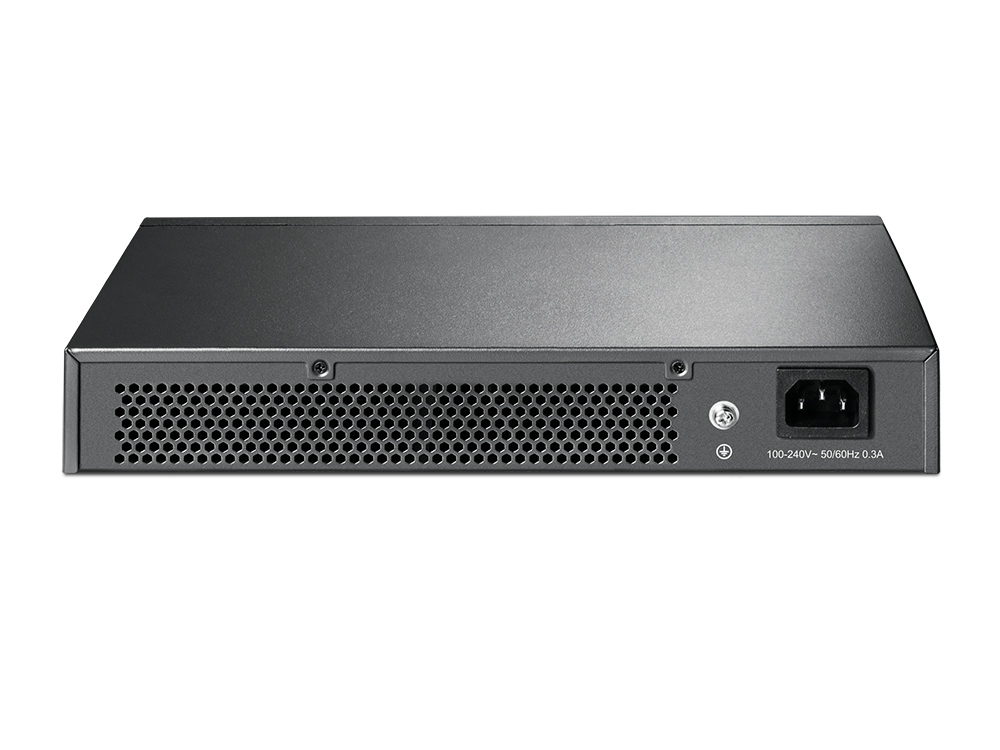

Power Supply : 100-240VAC, 50/60Hz

Power Consumption : Maximum: 9.26W (220V/50Hz)

Dimensions (W x D x H) : 11.6*7.1*1.7 in. (294*180*44 mm)

Max Power Consumption : 9.95W(220V/50Hz)

Max Heat Dissipation : 33.93BTU/h

PERFORMANCE

Switching Capacity : 32Gbps

Packet Forwarding Rate : 23.8Mpps

MAC Address Table : 8K

Jumbo Frame : 10KB

Green Technology : Yes

Transfer Method : Store-and-Forward
