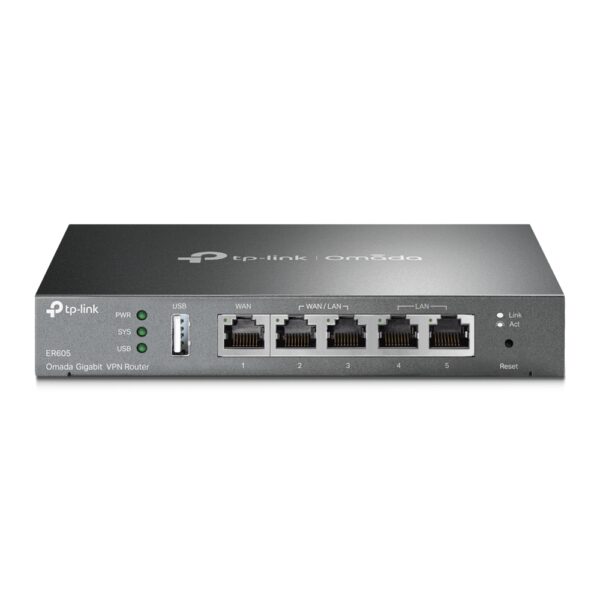

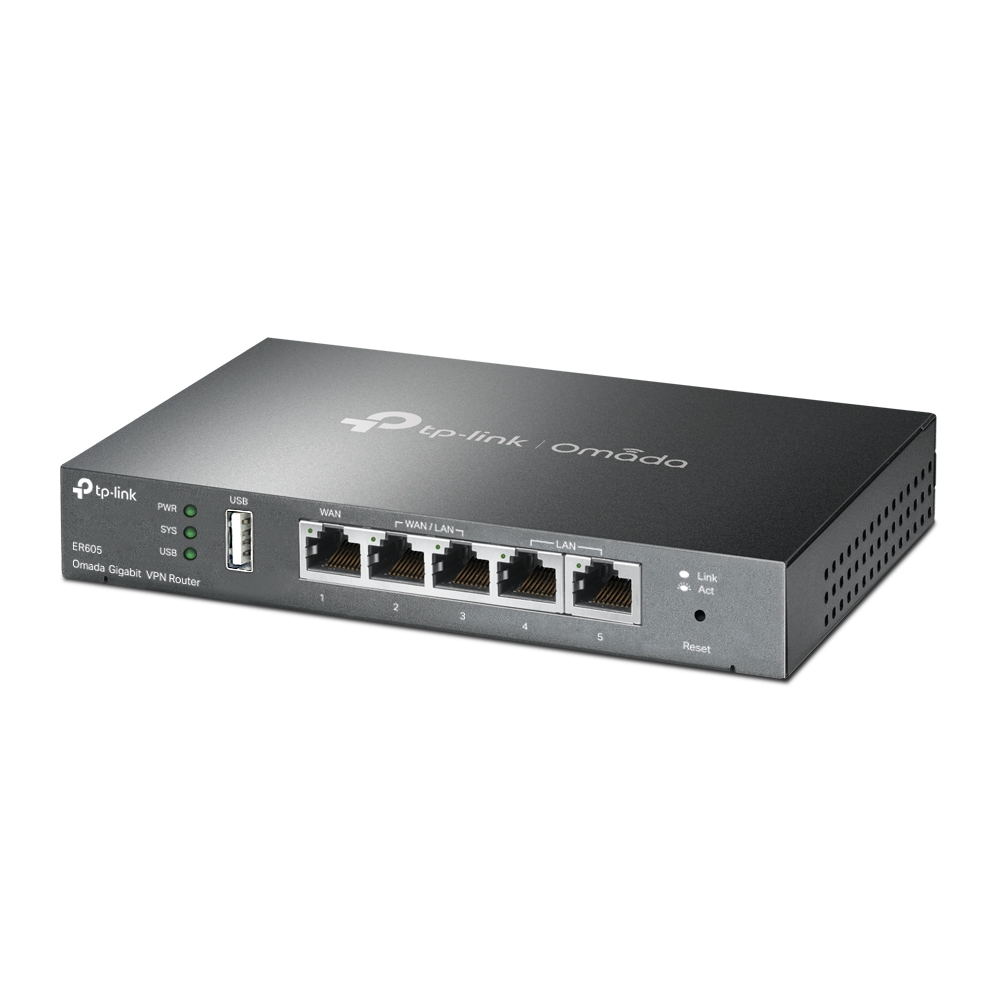

TP-Link VPN Router

  • Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for convenience and easy management.
  • Five Gigabit Ports: High-speed wired connectivity.
  • Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
  • One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.‡
  • Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
  • Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.



HARDWARE FEATURES

Standards And Protocols :

  • IEEE 802.3, 802.3u, 802.3ab
  • IEEE 802.3x
  • IEEE 802.1q
  • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface :

  •  1 Fixed Gigabit WAN Port
  • 2 Fixed Gigabit LAN Ports
  • 2 Changeable Gigabit WAN/LAN Ports
  • 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup‡)

Network Media :

  • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m)
  • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Fan Quality : Fanless

Button : Reset Button

Power Supply : External 12V/1A DC Adapter

Flash : 128 MB NAND

DRAM : 256 MB DDR

LED : PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB

Dimensions (W x D x H) : 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)

Protection : 4 kV surge protection

Enclosure : Steel

Mounting : Desktop/Wall-mount

Max Power Consumption : 7.94 W



PERFORMANCE

Concurrent Session : 150,000

New Sessions /Second : 2,600

Open VPN : 21.70 Mbps

NAT (Static IP) :

  • Upload: 945.77 Mbps
  • Download: 945.56 Mbps
  • Bi-Directional: 1808.29 Mbps

NAT (DHCP) :

  • Upload: 945.93 Mbps
  • Download: 945.43 Mbps
  • Bi-Directional: 1808.11 Mbps

NAT (PPPoE) :

  • Upload: 940.44Mbps
  • Download: 940.52 Mbps
  • Bi-Directional: 1804.27 Mbps

NAT (L21TP) :

  • Upload: 845.64 Mbps
  • Download: 802.65 Mbps
  • Bi-Directional: 931.96 Mbps

NAT (PPTP) :

  • Upload: 771.66 Mbps
  • Download: 874.81 Mbps
  • Bi-Directional: 999.54 Mbps

64 Byte Packet Forwarding Rate :

  • Upload/Download: 1,402,238 pps
  • Bi-Directional: 1,681,548 pps

IPsec VPN Throughput :

  • ESP-MD5-AES256: 171.26 Mbps
  • ESP-SHA1-AES256: 224.86 Mbps
  • ESP-SHA2-AES256: 248.04 Mbps

L2TP VPN Throughput :

  • Unencrypted: 864.65 Mbps
  • Encrypted: 47.11 Mbps

PPTP VPN Throughput :

  • Unencrypted: 703.20 Mbps
  • Encrypted: 76.65 Mbps

64 Byte Packet Forwarding Rate :

  • Upload/Download: 954.50 Mbps
  • Bi-Directional: 1130.00 Mbps

1,518 Byte Packet forwarding rate :

  • Upload/Download: 997.50 Mbps
  • Bi-Directional: 1965.00 Mbps



BASIC FUNCTIONS

WAN Connection Type :

  • Static/Dynamic IP
  • PPPoE
  • PPTP
  • L2TP
  • Mobile Broadband: 4G/3G modem for backup via USB port‡

MAC Clone : Modify WAN/LAN MAC Address†

DHCP :

  • DHCP Server/Client
  • DHCP Address Reservation
  • Multi-net DHCP*
  • Multi-IP Interfaces*

IPV6 : StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough

VLAN : 802.1Q VLAN

IPTV : IGMP v2/v3 Proxy, Custom Mode, Bridge Mode



ADVANCED FUNCTIONS

ACL : IP/Port/Protocol/Domain Name Filtering

Advanced Routing :

  • Static Routing
  • Policy Routing

Bandwidth Control : IP-based Bandwidth Control

Load Balance :

  •  Intelligent Load Balance
  • Application Optimized Routing
  • Link Backup (Timing§, Failover)
  • Online Detection

NAT :

  • One-to-One NAT§
  • Multi-Net NAT
  • Virtual Server
  • Port Triggering§
  • NAT-DMZ
  • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Security:

  • SPI Firewall
  • VPN Passthrough
  • FTP/H.323/PPTP/SIP/IPsec ALG
  • DoS Defence, Ping of Death
  • Local Management

Session Limit : IP-based Session Limit



VPN

IPsec VPN :

  • 20 IPSec VPN Tunnels
  • LAN-to-LAN, Client-to-LAN
  • Main, Aggressive Negotiation Mode
  • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
  • IKEv1/v2*
  • MD5, SHA1 Authentication Algorithm
  • NAT Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • Perfect Forward Secrecy (PFS)

PPTP VPN :

  • PPTP VPN Server
  • 10 PPTP VPN Clients
  • 16 Tunnels
  • PPTP with MPPE Encryption

L2TP VPN :

  • L2TP VPN Server
  • 10 L2TP VPN Clients
  • 16 Tunnels
  • L2TP over IPSec

Open VPN :

  • OpenVPN Server*
  • 10 OpenVPN Clients*
  • 16 OpenVPN Tunnels*
