• Wi-Fi 6 Technology Featuring Intel: Wi-Fi 6 technology achieves up to 3x faster speeds, higher capacity and lower latency compared to the previous generation of Wi-Fi 5 while Intel’s dual-core CPU ensures your experience is smooth and buffer-free.^^***
• Next-Gen 3 Gbps Speeds: Reach incredible speeds up to 3 Gbps (2402 Mbps on 5 GHz band and 574 Mbps on 2.4 GHz band) for faster streaming and gaming like you have never experienced before.^†
• Connect More Devices:  Simultaneously communicate more data to more devices using revolutionary OFDMA and MU-MIMO technology, letting you connect 40+ devices.^†‡
• Minimize Lag for All Devices and Applications: Experience ultra-smooth entertainment whether you are streaming 4K videos, gaming online, or even video chatting with up to 75% reduced lag.*
• More Reliable Coverage: Achieve the strongest, most reliable WiFi coverage up to 2,000 sq. ft. with Archer AX50 as it focuses signal strength to your devices using Beamforming technology and 4 antennas.^†
• HomeCare^TM: Protect your family with a lifetime free subscription of TP-Link’s HomeCare featuring next-level antivirus, robust parental controls and QoS.^
• Increased Battery Life for Devices: Target Wake Time technology reduces your devices’ power consumption to extend battery life.^****
• Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
• Backward Compatible: Archer AX50 supports all previous 802.11 standards and all WiFi devices.

Specifications

Wireless

Standards : Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds : AX3000

5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)

Working Modes

Router Mode
Access Point Mode

Hardware Specifications

Processor : Dual-Core CPU

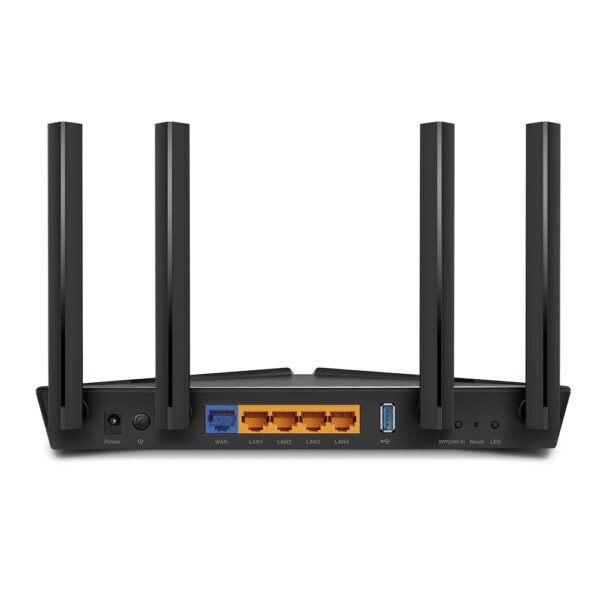

Ethernet Ports :

1× Gigabit WAN Port
4× Gigabit LAN Ports

Static Link Aggregation (LAG) available with 2× LAN ports

USB Support :

1× USB 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server

Buttons :

Wi-Fi/WPS Button
Power On/Off Button
LED On/Off Button
Reset Button

Power : 12 V ⎓ 2 A

Security

WiFi Encryption : WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)

Network Security : SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway

VPN Server : OpenVPN, PPTP
