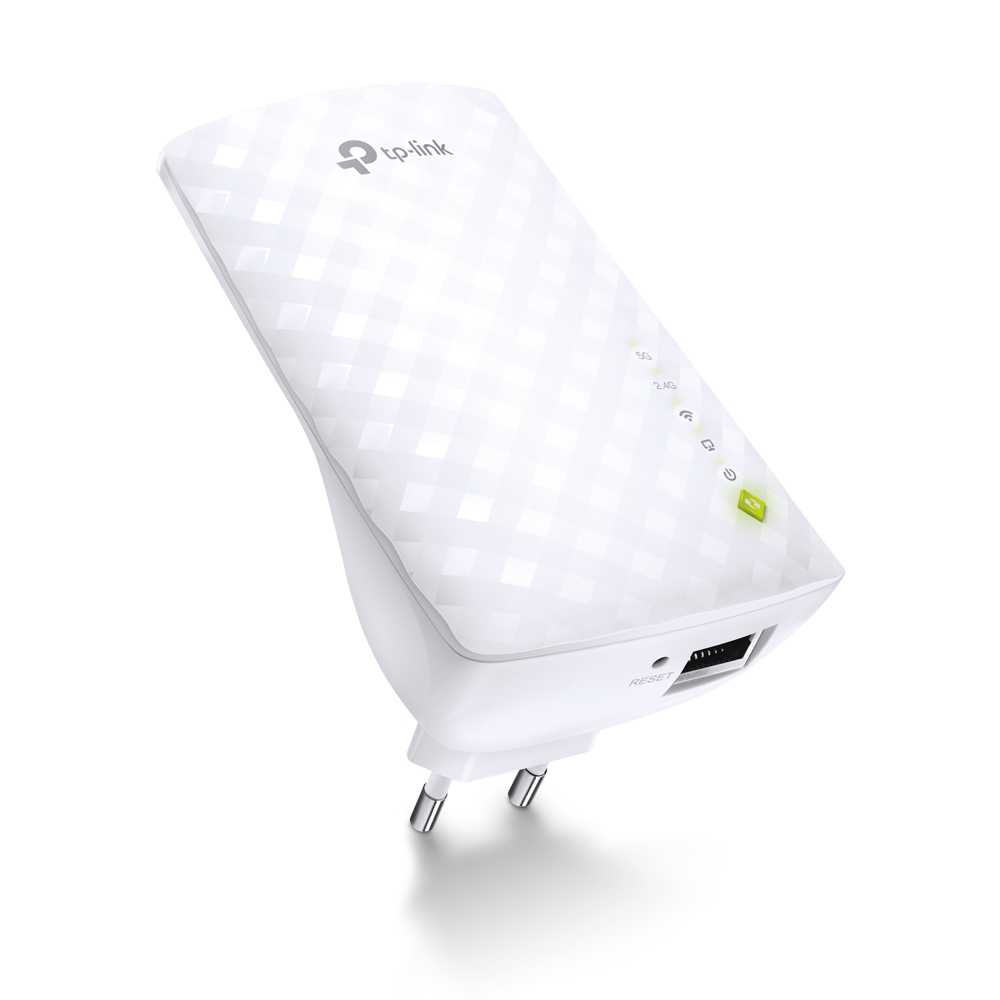

• Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at a combined speed of up to 1.2Gbps*
• Operates over both the 2.4GHz band(300Mbps) and 5GHz band(867Mbps) for more stable wireless experience*
• Intelligent signal light helps to fi­nd the best location for optimal Wi-Fi coverage by showing the signal strength
• Works with any Wi-Fi router or wireless access point**

HARDWARE FEATURES

Plug Type : EU, UK, US

Ports : 1 x 10/100Mbps Ethernet Port (RJ45)

Button : WPS Button, Reset Button

Input Power : 100-240V~50/60Hz

Power Consumption : 7.3W（max power consumption）

Dimensions (W x D x H) : 3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm)

Antenna : 2 External Antennas

WIRELESS FEATURES

Wireless Standards : IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency : 2.4GHz and 5GHz

Signal Rate :

• 300Mbps at 2.4GHz, 867Mbps at 5GHz

Wireless Modes : Range Extender/Access Point

Wireless Functions :

• Enable/Disable Wireless Radio
• DFS (the latest firmware and hardware version is required)
• Access Control
• LED Control
• Power Schedule
• Wi-Fi Coverage

Wireless Security : 64/128-bit WEP, WPA-PSK / WPA2-PSK
