• Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.^†
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^‡, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.^§
• PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

Specifications

Hardware Features

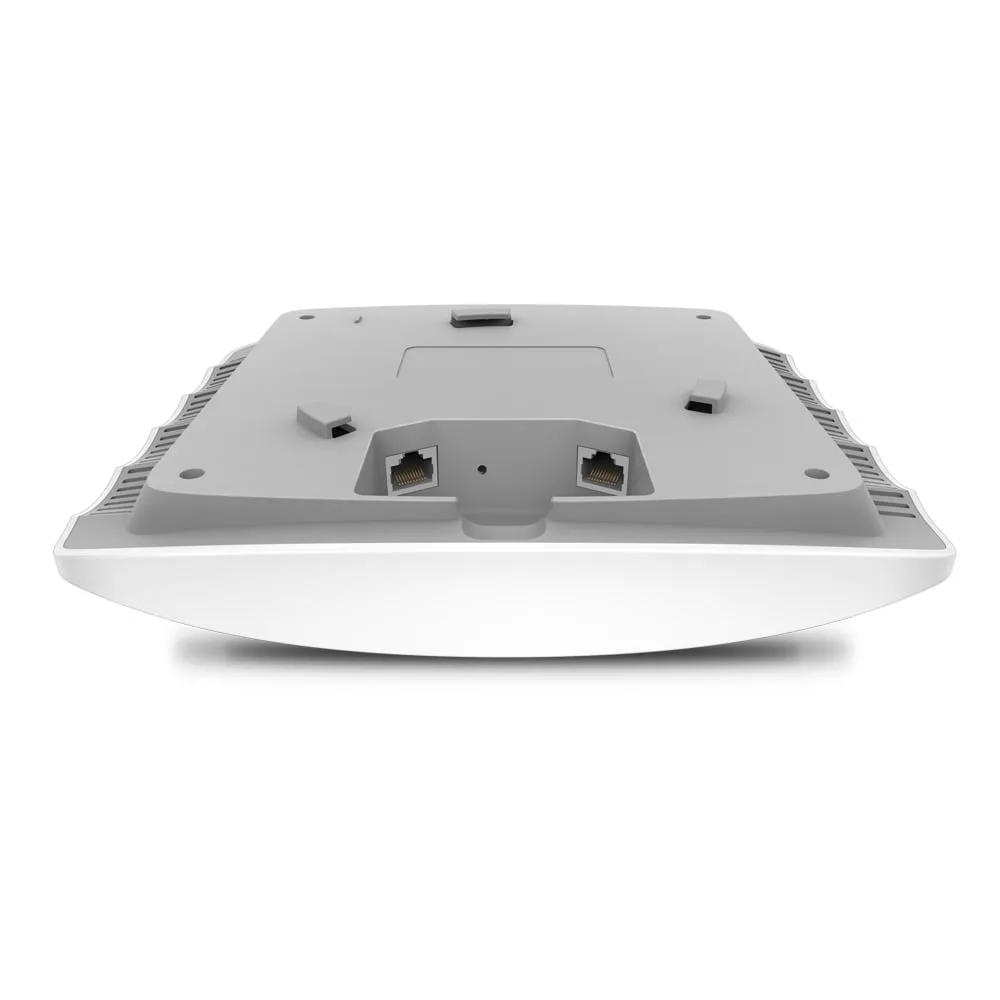

Interface : 2 × Gigabit Ethernet (RJ-45) Ports

Physical Security Lock : Yes

Button : Reset

Power Supply : 802.3af/at PoE or
48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption : 12.3 W

Dimension ( W x D x H ) : 8.1 × 7.1 × 1.5 in. (206 × 182 × 37 mm)

Antenna Type : Internal Omni
2.4GHz: 3 × 4dBi
5GHz: 3 × 4dBi

Mounting : Ceiling or Wall Mount (Mounting kit included)

Wireless Features

Wireless Standards : IEEE 802.11ac/n/g/b/a

Frequency : 2.4 GHz and 5 GHz

Signal Rate : 5GHz:Up to 1300Mbps
2.4GHz:Up to 450Mbps

Omada App : Yes
