Products

• AC1200 wireless with 100Mbps Ethernet backhaul
• Designed for office cubical and hotel room wired and wireless connections
• Easy-mount construction allows installation into 1-gang electric wall-box
• Compact, low-profile design fits discreetly with any existing interior style
• Cloud management and Omada App supported for ultra convenience and easy management
• Power over Ethernet (802.3af/802.3at) support makes deployment effortless and flexible
• Enterprise-class Wi-Fi security helps to decrease network security threats
• Supports management VLAN for an enhanced network management

Specifications

Hardware Features

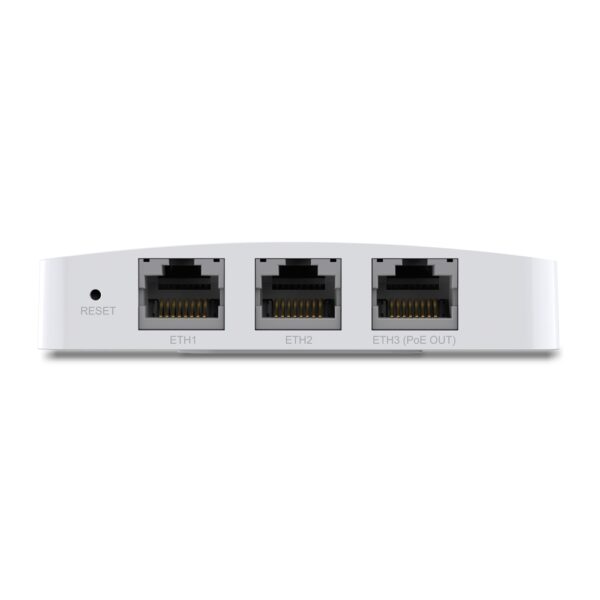

Interface : 1 × 10/100Mbps Ethernet uplink port accepts 802.3af/at power supply as PoE power device (PD)
2 × 10/100Mbps Ethernet Port
1 × 10/100Mbps with PoE pass-thru (requires 802.3at PoE+ power supply on PD port.)

Physical Security Lock : Yes

Button : Reset

Power Supply : 802.3af or 802.3at PoE

Power Consumption : 9 watts or
25.5 watts including PoE Out

Dimension ( W x D x H ) : 143 × 86 × 19.7 mm (5.6 × 3.4 × 0.8 in)

Antenna Type : 2 Dual-Band Antennas

2.4GHz: 2 × 3dBi
5GHz: 2 × 4dBi

Mounting : Wall Plate Mounting

Wireless Features

Wireless Standards : IEEE 802.11n/g/b/ac

Frequency : 2.4 GHz and 5 GHz

Signal Rate : 5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps

Omada App : Yes
