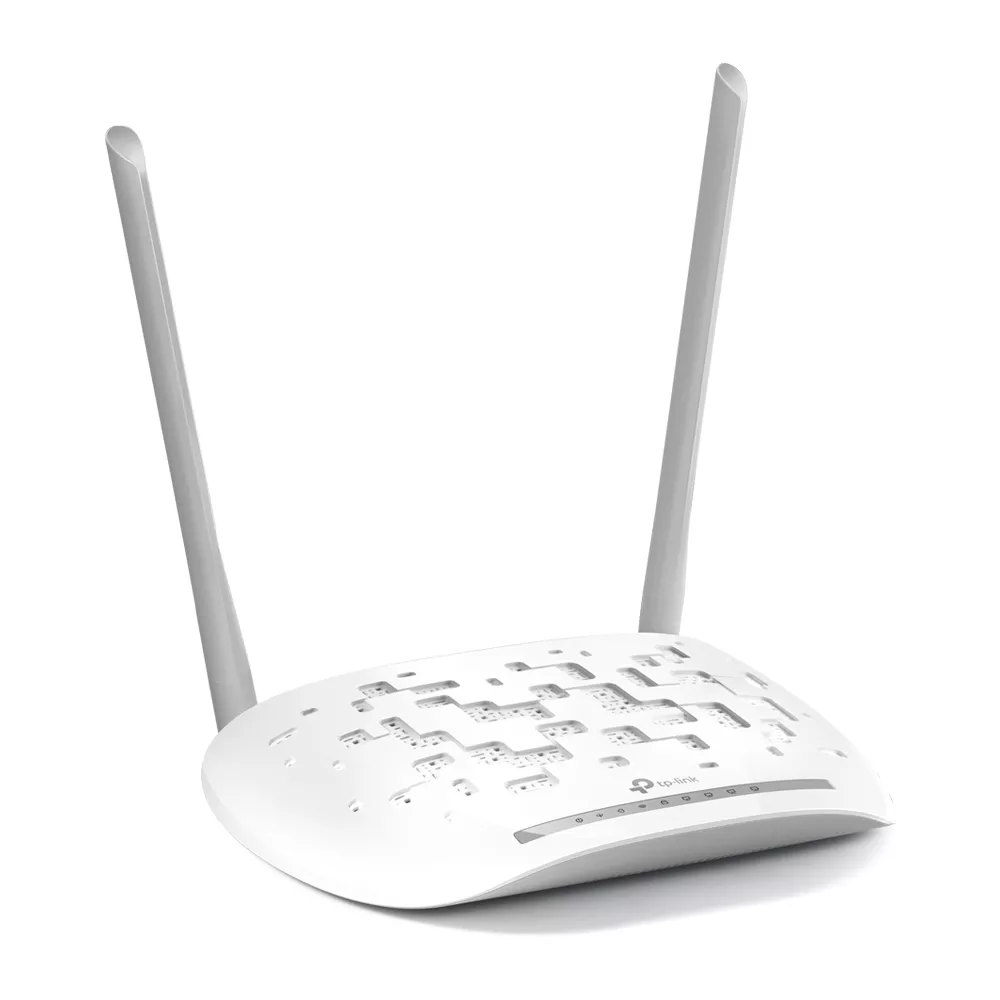

• All-in-One Device: ADSL2+ Modem, NAT Router, 4-Port Switch and Wireless N Access Point
• Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even the HD video streaming
• Easy Setup Assistant with multi-language support provides quick & hassle-free installation
• Easy one-touch wireless security encryption with the ‘WPS’ button and easy Wi-Fi On/Off button

HARDWARE FEATURES

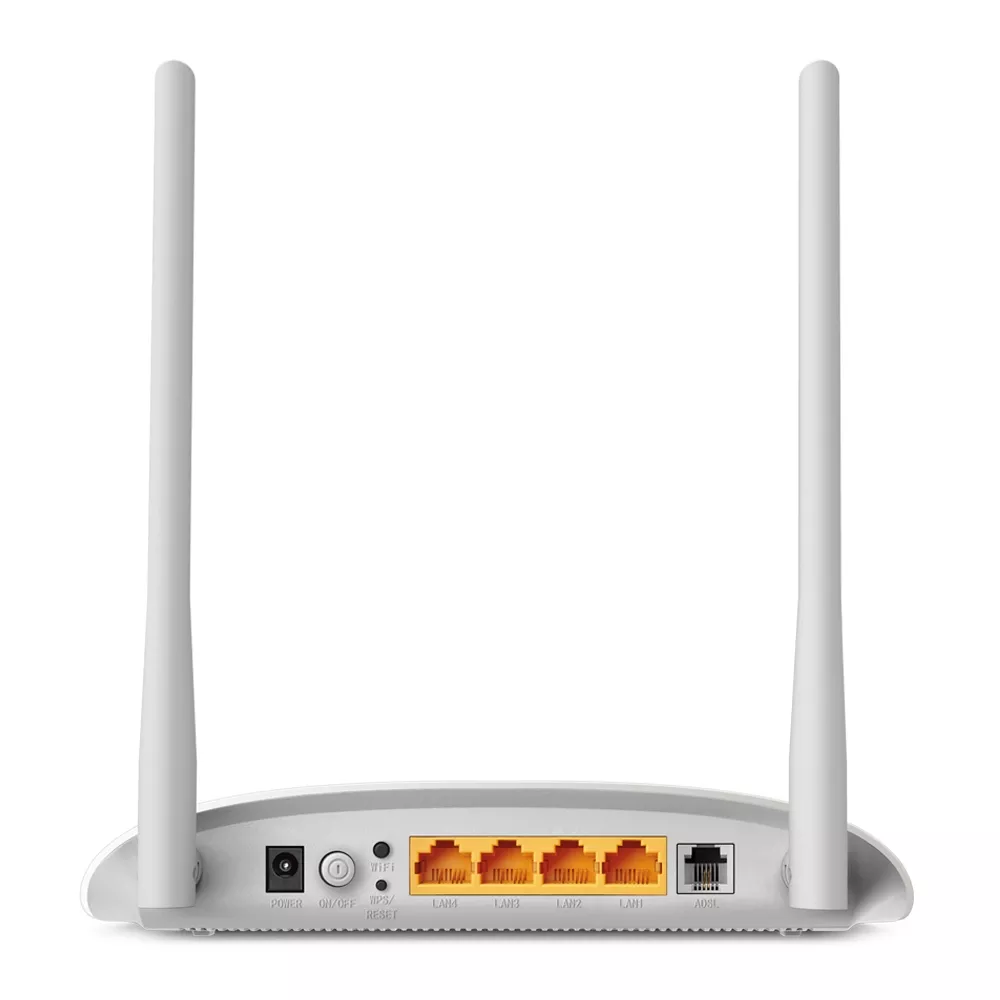

Interface :

• 4 10/100Mbps RJ45 Ports
• 1 RJ11 Port

Button :

• 1 Power On/Off Switch
• 1 WPS Button
• 1 Wi-Fi On/Off Button

External Power Supply : 9VDC/0.85A

IEEE Standards :

• IEEE 802.3, 802.3u

ADSL Standards :

• Full-rate ANSI T1.413 Issue 2
• ITU-T G.992.1(G.DMT)
• ITU-T G.992.2(G.Lite)
• ITU-T G.994.1 (G.hs)
• ITU-T G.995.1

ADSL2 Standards :

• ITU-T G.992.3 (G.dmt.bis)
• ITU-T G.992.4 (G.lite.bis)

ADSL2+ Standards : ITU-T G.992.5

Dimensions (W x D x H) : 7.7 * 5.1 * 1.4 in. (195 * 130 * 35 mm )

Antenna Type : Omni directional, Fixed

Antenna Gain : 2x5dBi

WIRELESS FEATURES

Wireless Standards

• IEEE 802.11n, 802.11g, 802.11b

Frequency :

• 2.400-2.4835GHz

Transmit Power :

• <20dBm(EIRP)

Wireless Security :

• Support 64/128 bit WEP
• WPA-PSK/WPA2-PSK
• Wireless MAC Filtering

SOFTWARE FEATURES

Quality of Services : QoS Remarking based on IPP/ToS, DSCP and 802.1p

Security :

• NAT Firewall
• SPI Firewall
• MAC / IP / Packet / Application / URL Filtering
• Denial of Service(DoS)
• SYN Flooding
• Ping of Death

Management :

• Web Based Configuration(HTTP)
• Remote management
• Telnet management
• Command Line Interface
• SSL for TR-069
• SNMP v1/2c
• SNMP over EOC
• Web Based Firmware Upgrade
• CWMP(TR-069)
• Diagnostic Tools

Port Forwarding : Virtual Server, DMZ, ACL(Access Control List)

VPN Pass-Through : PPTP, L2TP, IPSec Pass-through

ATM/PPP Protocols :

• ATM Forum UNI3.1/4.0
• PPP over ATM (RFC 2364)
• PPP over Ethernet (RFC2516)
• IPoA (RFC1577/2225)
• PVC – Up to 8 PVCs
