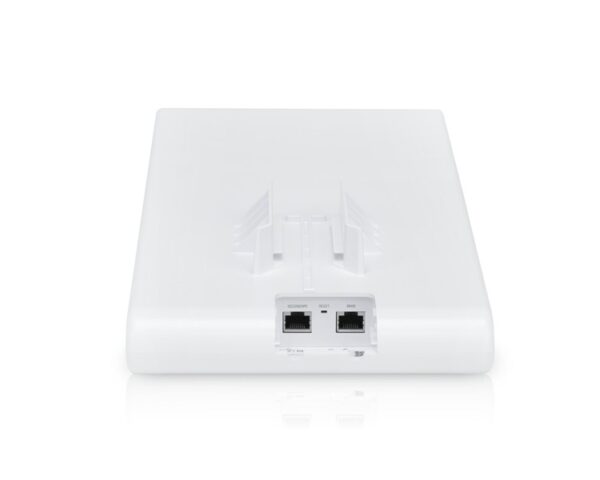

Ubiquiti Outdoor Access Point Mesh Pro



  • 802.11ac Wave 1 WiFi technology
  • 5 GHz (3×3 MIMO) band with a 1.3 Gbps throughput rate
  • 2.4 GHz (802.11n) band with a 450 Mbps throughput rate
  • Powered with PoE*
  • (2) GbE RJ45 ports



Technical Specifications

General

  • Dimensions: 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37″)
  • Weight: 633 g (1.40 lb)
  • Networking Interface: (2) 10/100/1000 Ethernet Ports
  • Buttons: Reset
  • Power Method: 802.3af PoE
  • (Supported Voltage Range: 44 to 57VDC)
  • Power Supply: 48V, 0.5A PoE Gigabit Adapter (Included)
  • Power Save: Supported
  • Maximum Power Consumption: 9W
  • Maximum TX Power:
    2.4 GHz – 22 dBm
    5 GHz – 22 dBm
  • Antennas: (3) Internal Dual-Band Antennas 8 dBi
  • Wi-Fi Standards: 802.11 a/b/g/n/ac
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • BSSID: Up to Four per Radio
  • Mounting: Wall/Pole (Pole Kit Included)
  • Operating Temperature: -40 to 70° C (-40 to 158° F)
  • Operating Humidity: 5 to 95% Noncondensing
  • Certifications: CE, FCC, IC



Advanced Traffic Management

  • VLAN 802.1Q
  • Advanced QoS Per-User Rate Limiting
  • Guest Traffic Isolation Supported
  • WMM Voice, Video, Best Effort, and Background
  • Concurrent Clients 200+



Supported Data Rates (Mbps)

  • Standard Data Rates
  • 802.11ac 6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80)
  • 802.11n 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
  • 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11b 1, 2, 5.5, 11 Mbps
