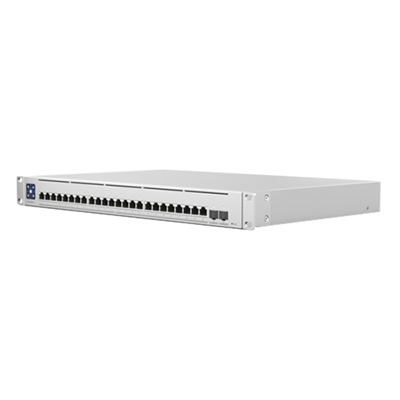

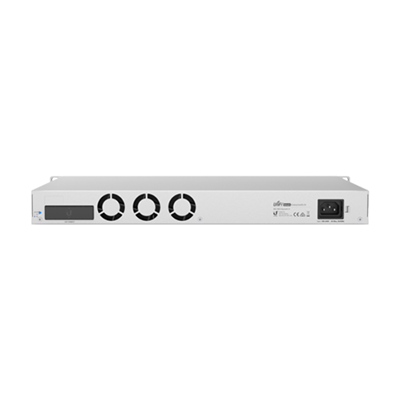

Ubiquiti UniFi Switch Enterprise XG 24



Ubiquiti UniFi Switch USW-EnterpriseXG-24 Key Features

  • 1.3″ LCM color touchscreen with AR switch management
  • 24x 10GbE RJ45 ports
  • 2x 25G SFP28 ports
  • USP RPS DC input
  • Layer 3 switching features
  • Single-row RJ45 port layout for easy patch panel cable management



Technical Specifications

Mechanical

  • Dimensions: 442 x 44 x 285 mm (17.4 x 1.7 x 11.2″)
  • Weight: Without Mount: 4.47 kg (9.85 lb) / With Mount: 4.57 kg (11.02 lb)
  • Enclosure Materials: SGCC Steel
  • Mount Material: SGCC Steel

Hardware

  • Total Non-Blocking Throughput: 290 Gbps
  • Switching Capacity: 580 Gbps
  • Forwarding Rate: 431.52 Mpps
  • Max. Power Consumption: 100W
  • Power Method: (1) Universal AC input: 100-240VAC, 2A Max., 50/60 Hz, (1) USP-RPS DC input: 11.5VDC, 8.7A
  • Power Supply: AC/DC, Internal, 100W
  • Management Interface: Ethernet In-Band
  • Networking Interfaces: (24) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet / SFP28 Interfaces: (2) 1/10/25 Gbps SFP28*
  • Services: SMB Layer 3 Gigabit Ethernet Switch
  • ESD/EMP Protection    Air: ± 16 kV, Contact: ± 12 kV
  • LCM Display: 1.3″ Touchscreen
  • Bootup Animation: Bootup in Progress
  • Firmware Upgrade Icon: Firmware Upgrading
  • Steady White: Factory Defaults, Awaiting Adoption
  • Steady Blue: Device is Adopted
  • Button: Factory Reset
  • LEDs: White: Link or Activity
  • Operating Temperature: -5 to 40° C (23 to 104° F)
  • Operating Humidity: 10 – 95% Noncondensing
