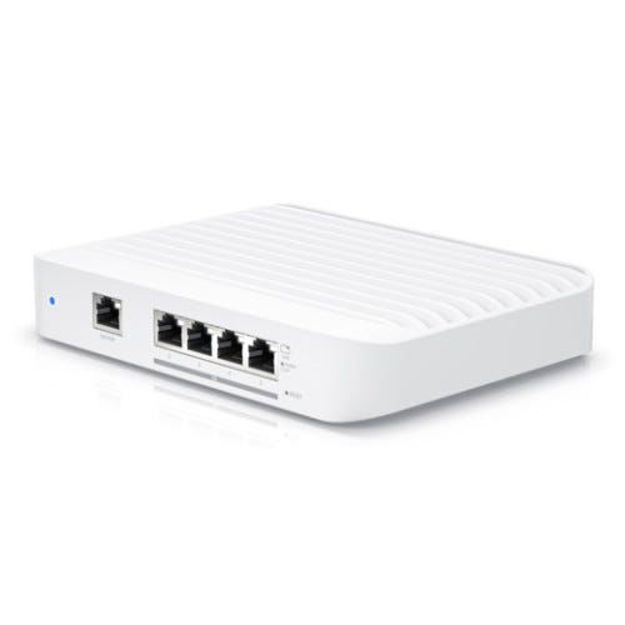

Ubiquiti UniFi Switch USW-FLEX XG Key Features

• One Gigabit PoE input port
• Four 10GbE RJ45 ports
• Compact, slim housing
• Managed with the UniFi Network Application (web and mobile): Version 6.1.67 or higher.

Technical Specifications

General

• Dimensions: 135 x 185 x 32 mm (5.31 x 7.28 x 1.27″)
• Weight: 1.2 kg (2.65 lb)
• Enclosure material: Polycarbonate

Hardware

• Total Non-Blocking Throughput: 41 Gbps
• Switching Capacity: 82 Gbps
• Forwarding Rate: 61.012 Mpps
• Max Power Consumption: 25W
• Power Method:
  – 802.3at PoE, 50-57VDC, 25W
  – One USB Type-C, 5VDC, 5A
• Power Supply
  – 802.3at PoE (Pins 1, 2+/3, 6- or 4, 5+/7, 😎
  – AC/DC Power Adapter, 5VDC, 5A, 1.5 m Cord (Included)
• Supported Voltage Range: 90 to 264VAC (Adapter)
• Management Interface: Ethernet In-Band
• Networking Interfaces:
  – One 10/100/1000 Mbps RJ45 Ethernet
  – Four 1/2.5/5/10 Gbps RJ45 Ethernet
• Services: SMB Layer 2 Gigabit Ethernet Switch
• ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
• Button: Factory Reset
• Operating Temperature: -5 to 45° C (23 to 113° F)
• Operating Humidity: 10 – 90% Noncondensing

LEDs

• One Power, Blue/White
• Flashing White: Bootup in Progress
• Flashing Blue: Firmware Upgrading
• Steady White: Factory Defaults, Awaiting Adoption
• Steady Blue: Device is Adopted
