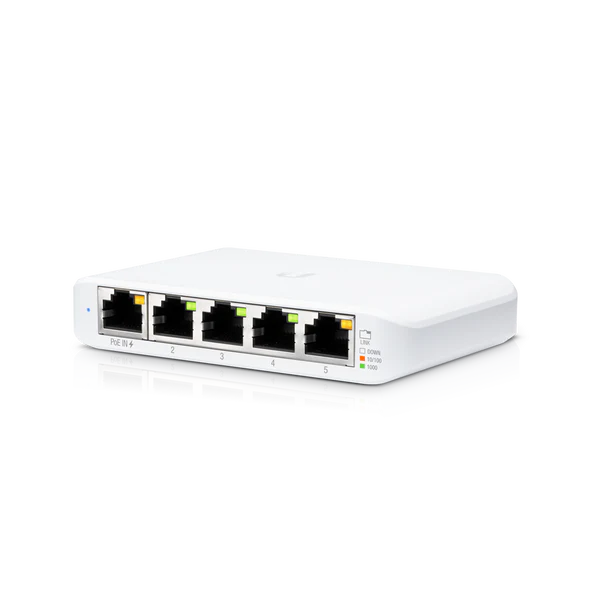

Ubiquiti UniFi USW-Flex-Mini Key Features

• Powered by 802.3af/at PoE or USB Type C (european only)
• Compact Desktop Footprint
• Energy-Efficient Design
• 5x 10/100/1000 RJ45 ports
• 1x 802.3af/at PoE input port

Compact Desktop Design

The cost-effective UniFi Switch Flex Mini can be discreetly integrated into any environment.

Copper Connectivity

Five RJ45 ports offer 10/100/1000 links. One port also supports 802.3af/at PoE input.

Efficient Use of Energy

The UniFi Switch Flex Mini uses only a maximum of 2.5W. For your convenience, it can be powered by 802.3af/at PoE or a 5V, 1A USB-C power adapter (european only)

Switching Performance

The UniFi Switch Flex Mini offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Technical Specifications

General

• Dimensions: 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83″)
• Weight: 150 g (5.29 oz)
• Interfaces:
  – Networking: (5) 10/100/1000 RJ45 Ports
  – PoE In: 802.3af/at PoE (Pins 1, 2+; 3, 6-)
  – Management: Ethernet In-Band
• Total Non-Blocking Throughput: 5 Gbps
• Switching Capacity: 10 Gbps
• Forwarding Rate: 7.44 Mpps
• Power Method:
  – USB Type C, 5V
  – 802.3af/at PoE (44 – 57VDC, 0.05 – 0.04A)
• Voltage Range:
  – USB Type C: 4.7 – 5.3V
  – 802.3af/at PoE: 44 – 57VDC
• Max Power Consumption: 2.5W
• LEDs:
  – System: Status
  – RJ45 Data Ports: Speed/Link/Activity
• ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
• Shock and Vibration: ETSI300-019-1.4 Standard
• Operating Temperature: -5 to 45° C (23 to 113° F)
• Operating Humidity: 10 – 90% Noncondensing
