Products

• 1080p Full HD, 30 FPS
• EFL 3.6 mm, ƒ/1.8
• Outdoor Weather Resistant
• 802.3af PoE or 24V Passive PoE
• Built-in Microphone
• Wall, Ceiling, or Pole Mount
• High-Power IR Range Extender Accessory (Sold Separately)

Powerful Software Management

Use the UniFi Video mobile app for easy camera management and live streaming from an iOS or Android-based smartphone or tablet. The UniFi Video mobile app is now available in the App Store for iOS and Google Play Store for Android.

HD Image Quality

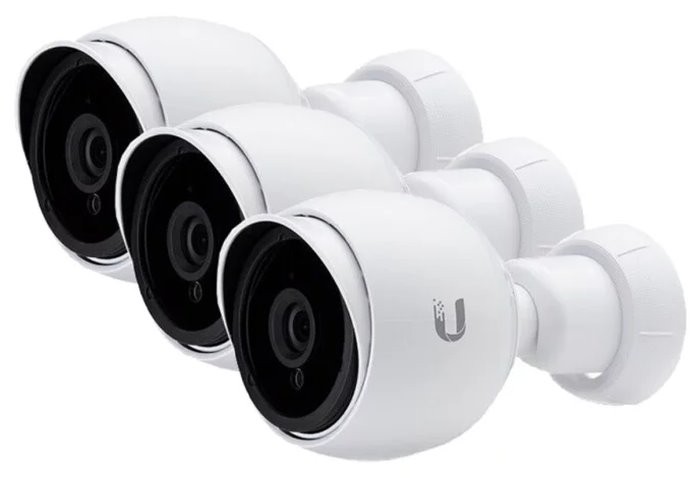

Featuring an EFL 3.6 mm f/1.8 lens for superior vision, the Ubiquiti UniFi Video Camera G3 (UVC-G3-AF) provides 1080p HD resolution at 30 FPS – that’s an impressive 360p more that its G2 predecessor!

Hybrid Cloud Technology

Hybrid Cloud Technology combines the best of local and cloud management: secure, local storage, and convenient remote access with streaming privacy – no licensing or maintenance fees.

Technical Specifications

General

• Dimensions: Ø 75 x 140 mm (Ø 2.95 x 5.51″)
• Weight: 300 g (10.58 oz)
• Enclosure: Injection-Molded Polycarbonate and Die-Cast Aluminum
• Networking Interface: (1) 10/100 Ethernet Port
• Sensor: 1/3″ 4-Megapixel HDR Sensor
• Lens: EFL 3.6 mm, f/1.8
• Night Mode: IR LEDs with Mechanical IR Cut Filter
• Microphone: Yes
• Button: Factory Reset Button
• Power Method: 802.3af PoE or 24V Passive PoE
• Power Supply: 802.3af PoE Switch
• Maximum Power Consumption:
  – Standalone: 4W
  – With Optional IR Extender: 9W
• Mounting: Wall/Ceiling/Pole
• Operating Temperature: -20 to 50° C (-4 to 122° F)
• Operating Humidity: 20 – 90% Noncondensing

Video

• Video Compression: H.264
• Resolution: 1080p Full HD (1920×1080)
• Maximum Frame Rate: 30 FPS
• Image Settings: Brightness, Contrast, Sharpness, Saturation, Noise Reduction, 50/60 Hz

Additional Specifications

• Viewing Angle:
  – Before Lens Correction: 85° (H), 44.8° (V), 98.1° (D)
  – After Lens Correction: 72° (H), 42.9° (V), 80.4° (D)
• Supported UniFi Video Version: UniFi Video 3.8 (or Newer)
• UniFi Video System Requirements: 64-bit Microsoft Windows 10/8/7, Ubuntu 14.04 or 16.04, or Debian 7.0 System with an Intel or Compatible 1.86 GHz (or Above) Processor and a Minimum of 4 GB RAM
