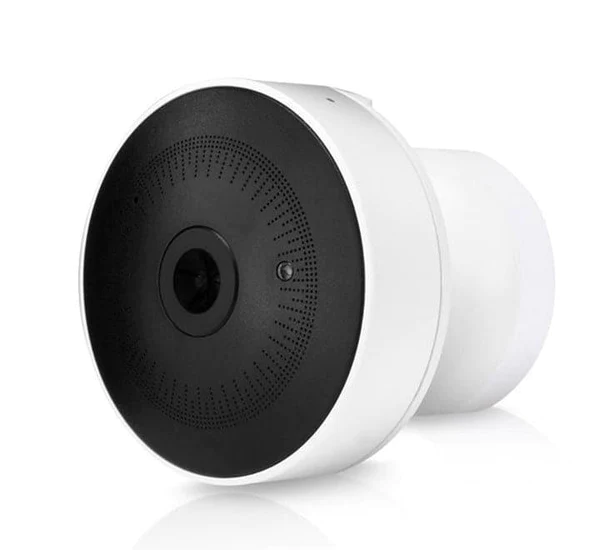

Ubiquiti UniFi G3 Micro Key Features

• 1080p Full HD
• Compact size
• Dual-band Wireless
• EU 100-240V AC or 802.3af power
• Magnetic base, wall mounts, and desk mount

Breakthrough Size and Performance

About the size of a golf ball, the Ubiquiti UniFi Video Camera G3 Micro provides 1080p HD resolution at 30 FPS.

Wide-Angle 1080p HD Video

Get the full picture in sharp 1080p video. Automatic high-power infrared illumination at night provides crisp video even in the darkest conditions.

Dual-Band Wi-Fi Connectivity

Super-fast 2.4 GHz and 5 GHz wireless for streaming HD video.

Listen In, Talk Back

2-way audio communication through the UniFi Video mobile applications.

Technical Specifications

General

• Dimensions:
  – Body: Ø 51.38 x 41.97 mm (Ø 2.02 x 1.65″)
  – Base: Ø 36 x 17.3 mm (Ø 1.42 x 0.68″)
• Weight:
  – Body: 65 g (2.29 oz)
  – Base: 31 g (1.09 oz)
• Networking Interface: 802.11 a/b/g/n, 2.4 GHz/5 GHz Dual-Band WiFi
• Sensor: 1/3″ 4-Megapixel Sensor with WDR
• Lens: EFL 2.7 mm, f/2.2
• Night Mode: IR LEDs with Removable IR Cut Filter, Built-in Light Sensor
• Microphone: Yes (with Microphone Volume Control)
• Button: Factory Reset Button
• Power Supply: AC Adapter or Instant PoE Adapter (Included)
• Maximum Power Consumption:
  – IR LEDs On: 3.5W
  – IR LEDs Off: 2W
• Mounting: Magnetic Base/Wall/Table
• Operating Temperature: 0 to 35° C (32 to 95° F)
• Operating Humidity: 20 – 90% Noncondensing

Video

• Video Compression: H.264
• Resolution: 1080p Full HD (1920×1080)
• Maximum Frame Rate: 30 FPS
• Image Settings: Flip, Brightness, Contrast, AE Mode (50/60 Hz), WDR, Hue, Infrared, Sharpness, Saturation, Noise Reduction

Other

• Viewing Angle:
  – LDC Off: 124° (H), 65° (V), 150° (D)
  – LDC On: 92° (H), 60° (V), 100° (D)
• Supported UniFi Video Version: UniFi Video 3.8 (or Newer)
• UniFi Video System Requirements: 64-bit Microsoft Windows 10/8/7, Ubuntu 14.04 or 16.04, or Debian 7.0 System with an Intel or Compatible 1.86 GHz (or Above) Processor and a Minimum of 4 GB RAM
