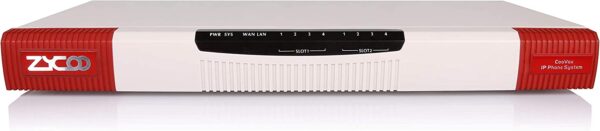

Zycoo Coovox IP PBX U-Series



  • Supports 200 extensions,60 concurrent calls.
  • FXO/FXS/GSM/ WCDMA/PRI(E1/T1)/BRI Modules
  • Modular Design.
  • Fax to email and one click to send fax.
  • USB port for extended data storage.
  • SIP over IPv6.
  • LDAP phonebook.
  • WebRTC enables your browsers and mobile applications with Real-Time Communications (RTC) capabilities.



Features

Call Features
  • Call Forward
  • Call Group
  • Call Hold
  • Call Paging and Intercom
  • Call Pickup
  • Call Queue
  • Call Park
  • Music On Hold/Transfer
  • Call Recording
  • Call Routing
  • Blind Transfer
  • Attendant Transfer
  • 3-Way Conference
  • Video Calls
  • Call Waiting
  • Caller ID
PBX Features
  • Blacklist
  • BLF (Busy Lamp Field)
  • CDR (Call Detailed Record)
  • Conference Room
  • Follow Me
  • Distinctive Ringtone
  • DND (Do Not Disturb)
  • Call Monitoring
  • Mobility Extension
  • Feature Codes
  • Multi-Language GUI
  • DISA (Direct Inward System Access)
  • One Touch Recording
  • Phone Book(LDAP Server)
  • Phone Provisioning
  • Pin Set
  • Record File Download
  • Ring Group
  • SIP Register with UDP/TCP/TLS
  • SIP Trunk
  • Skype for SIP
  • Smart DID
  • Speed Dial
  • Spy
  • Multi-Language Prompts
  • Time Conditions
  • Fax to Email
  • WebRTC/ Web Dial
  • SRTP (Secure Realtime Transport Protocol)
  • IVR (Interactive Voice Response)
  • FOP (Flash Operator Panel) Status Monitoring
  • DNIS (Dialed Number Identification Service)
  • DID (Direct Inward Dialing)
  • Voicemail & Voicemail to Email
System Capacities
  • 60 Simultaneous Calls
  • Up to 200 IP Phone Registers/Extensions
  • Recording/Voicemail: 150hrs
  • 10 Conference Rooms
  • 60 Simultaneous Conference Attendees
Codecs & Protocols
  • Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/G.729/G.726/GSM/Speex
  • Video Codecs: H.261/H.263/H.263+/H.264/VP8
  • Protocols: SIP (RFC3261)/IAX2
  • Transport Protocols: TCP/UDP/TLS
  • DTMF: RFC 4733/SIP INFO/IN-Band
Network Features
  • VPN Server (PPTP, OpenVPN)
  • VPN Client (PPTP, OpenVPN)
  • DDNS
  • DHCP Client/Server
  • NTP/SNTP
  • Static Routing
Security Features
  • Firewall
  •  IP Blacklist
  • Firewall
  •  IP Whitelist
  • GeoIP
  •  Intrusion Detection and Prevention
Security Features
  • PBX Log
  • Web Access Log
  • PBX Debug Log

Specification

Hardware Specifications
  • Intel Dual-core 2.41GHz CPU
  • 2GB DDR3L RAM
  • 16GB On board EMMC
  • HDMI (High-Definition Multimedia Interface)
  • Audio In/Out (Paging)
  • 2 x 1000Mbps Ethernet Ports
  • USB 3.0 + USB 2.0 (Extended Storage)
  • Power: AC 100~240V, 50/60Hz, 1.5A max
  • Power Supply: Input AC 100~240V, 50/60Hz;
Environment
  • Working Temperature: 0°C～40°C
  • Storage Temperature: -20°C~55°C
  • Humidity: 5%~95% non-condensing
