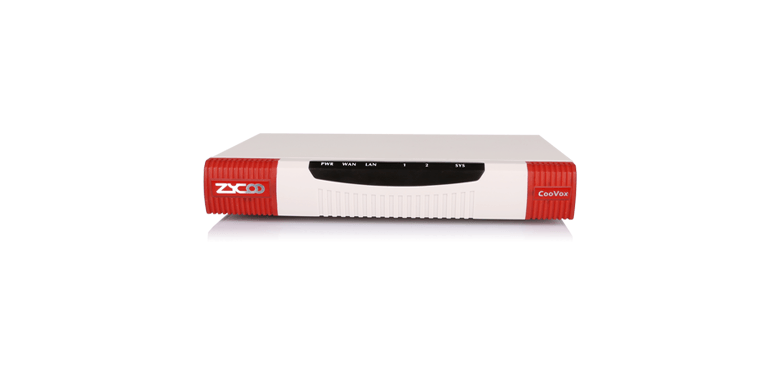

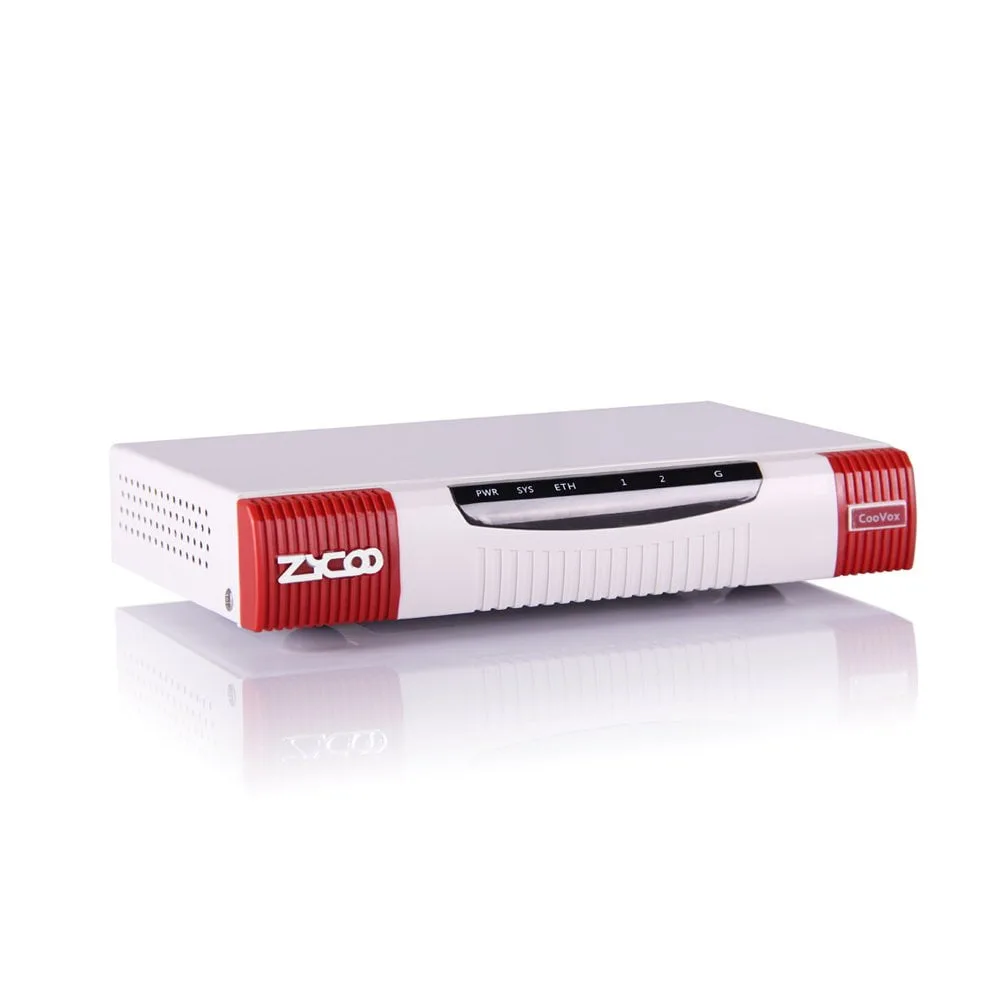

Zycoo Coovox IP PBX U-Series



Extension Users : 32

Concurrent Calls : 15 (Max)

Supported Module : 2FXO/2FXS/FXOS, 1GSM is optional

Supported Maximum Module : 1

Port number : 2

Voicemail/Recording : 150Hrs (internal storage)

SDRAM : 1GB DDR3

Storage : 16GB SD Card (Industry Standard)



Features

Call Features

  • Call Forward
  • Call Hold
  • Call Paging and Intercom
  • Call Park
  • Call Queue
  • Call Recording
  • Call Routing
  • Blind Transfer
  • Attendent Transfer
  • Call Waiting
  • One Number Stations
  • Call ID
  • Call Pickup
  • Music On Hold/ Transfer
  • 3-Way Conference
  • Video Call

PBX Features

  • BLF (Busy Lamp Field)
  • CDR (Call Details Record)
  • Conference
  • Call Monitoring
  • DID (Direct Inward Dialing)
  • DISA (Direct Inward System Access)
  • Distinctive Ringtone
  • DND (Do Not Disturb)
  • Spy
  • Feature Codes
  • Skype for SIP
  • Follow Me
  • IVR (Interactive Voice Response)
  • Mobility Extension
  • Multi-Language Prompts
  • Multi-Language GUI
  • One Touch Recording
  • Phone Book(LDAP Server)
  • Phone Provisioning
  • Pin Set
  • Record File Download
  • Ring Group
  • SIP Register with UDP/TCP/TLS
  • SIP Trunk
  • Voicemail & Voicemail to Email
  • Smart DID
  • Speed Dial
  • WebRTC
  • T.38 Fax (Pass-through)
  • Time Based Rule
  • SRTP (Secure Realtime Transport Protocol)
  • FOP (Flash Operation Panel) Status Monitoring
  • DNIS (Dialed Number Identification Service)

System Capacities

  • Up to 15 Concurrent Calls
  • Up to 30 IP Phone Registers/Extensions
  • Up to 32 Conferences
  • Recording/Voicemail: 150hrs

Codecs & Protocols

  • Protocols: SIP (RFC3261)/IAX2
  • G.726/G.729/GSM/SPEEX Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/
  • Video Codecs： H.261/H.263/H.263+/H.264/VP8
  • DTMF: RFC4733/SIP INFO/In-Band

Network Features

  • DDNS Client
  • DHCP Server
  • Trouble Shooting (Ping/Traceroute)
  • Static Route
  • IPv4/IEEE802.1Q
  • IP Assignment (PPPoE/DHCP/Static)
  • VPN Client (PPTP/OpenVPN)
  • VPN Server (PPTP/OpenVPN)

Security Featuers

  • Firewall
  • IP Blacklist
  • IP Whitelist
  • GeoIP
  • Intrusion Detection and Prevention

Logs

  • PBX Log
  • Web Access Log
  • PBX Debug Log



Specifications

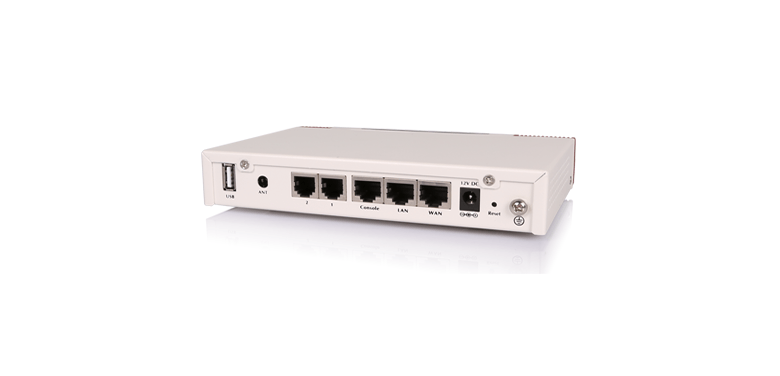

Hardware Interfaces

  • 1 Reset Button
  • 1 Power Interface
  • 2 Ethernet Interface
  • 2 Analog Ports (FXO/FXS)
  • 1 USB 2.0 Interface for Storage
  • 1 Console Port

Hardware Specifications

  • SDRAM: DDR3 512MB
  • Processor: DualCore A7(1GHz)
  • Output DC 12V/1A
  • Storage: 16GB SD Card(Industry Standard)

Environment

  • Working Temperature: 0 ~ 40°C
  • Storage Temperature: -20 ~ 55°C
  • Humidity: 5 ~ 95% Non-condensing
